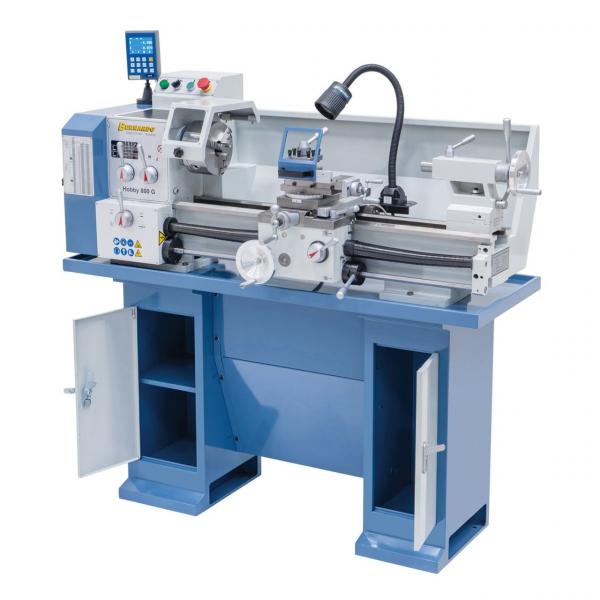

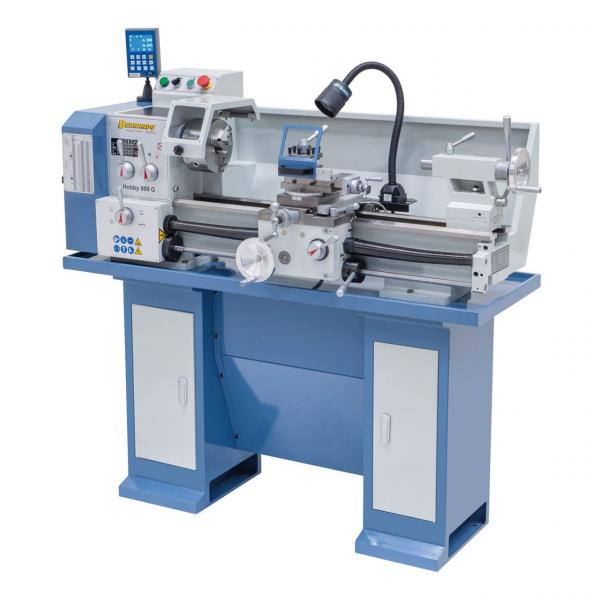

Bernardo lead screw lathe Hobby 800 G / 400 V incl. 3-axis digital readout DT 40
NEW
Product features Bernardo lead screw lathe Hobby 800 G / 400 V incl. 3-axis digital readout DT 40
The Hobby 800 G lathe is equipped as standard with a lead screw for thread cutting or for automatic longitudinal and face feed. The 12-step gearbox enables quick speed adjustment - no V-belt change necessary. Thanks to its compact design and high dead weight, this machine runs very smoothly and therefore guarantees precise work.
- Quick and easy speed change thanks to manual gearbox
- High concentricity of the spindle nose (≤ 0.009 mm) due to precision tapered roller bearings
- Powerful drive motor for high torque, speed range 70 - 1800 rpm
- Versatile application possibilities: Precision mechanics, training and teaching workshops, ...
- The feed adjustment is simple, smooth-running and precisely switchable
- Solid machine bed with induction-hardened and ground bed guide
- Ideal for machining steel, non-ferrous materials and plastics
- With lead screw for thread cutting or for automatic longitudinal and cross feed as standard
- Carriage including handwheels with fine scaling
Scope of delivery Bernardo lead screw lathe Hobby 800 G / 400 V incl. 3-axis digital readout DT 40

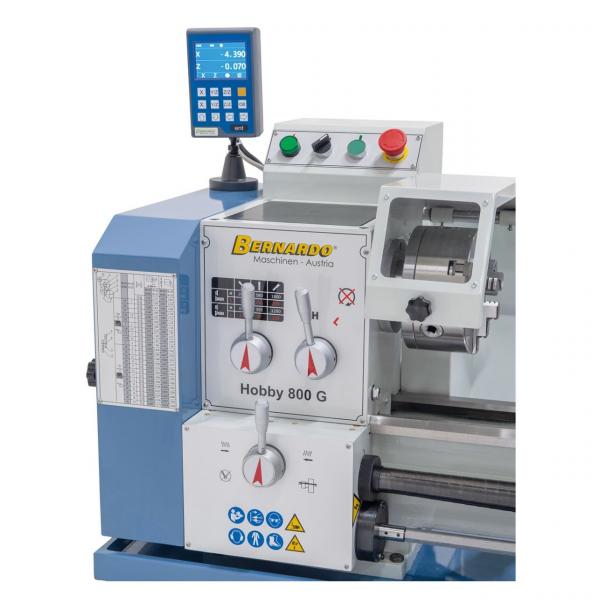

- 3-axis digital readout DT 40 with LCD display
- 3-jaw chuck 160 mm
- Facing slide with top support
- Fixed centre point
- Interchangeable wheels
- Quadruple steel holder
- LED machine light

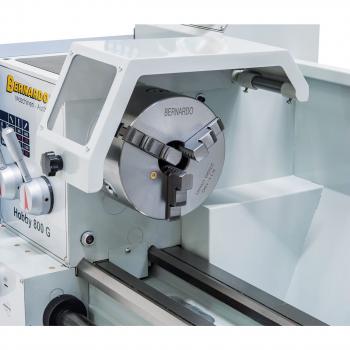

- Chuck guard
- Chip guard
- Lead screw cover
- Chip tray
- Underframe
- Operating tool
Technical data Bernardo lead screw lathe Hobby 800 G / 400 V incl. 3-axis digital readout DT 40
| Centre distance | 750 mm |
| Centre height | 165 mm |
| Circumferential diameter over bed | 330 mm |
| Bed width | 160 mm |
| Spindle bore | 38 mm |
| Mounting in the spindle bore | MK 5 |
| Speed range | (12) 70 - 1800 rpm |
| Longitudinal feed range | (45) 0,0087 - 1,395 mm/rev |
| Plan feeds area | (48) 0,018 - 0,296 mm/rev |
| Metric thread | (17) 0,5 - 4 mm |
| Inch thread | (26) 8 - 40 Gg/1" |
| Quill path | 75 mm |
| Quill holder | MK 3 |
| Motor output power S1 100% | 1,1 kW / 400 V |
| Motor power consumption S6 40% | 1,5 kW / 400 V |
| Machine dimensions (W x D x H)* | 1370 x 680 x 1320 mm |
| Weight approx. | 268 kg |
| * without base frame |
