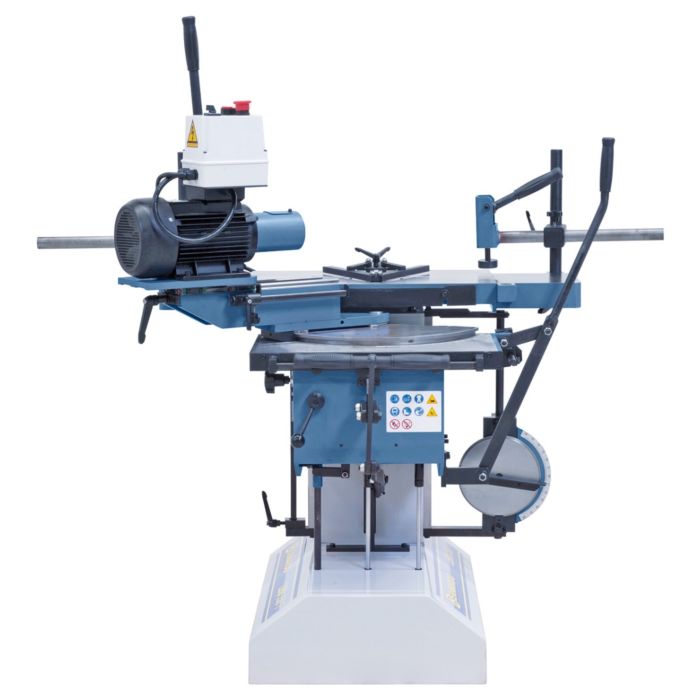

Bernardo LBM 350 T Slot drilling machine
Properties Bernardo LBM 350 T Slot drilling machine
- Maintenance-free linear guiding allows for feed of drill depth
- Quick lift system allows for effi cient, economical processing without time-consuming winding of crank
- Smooth, stepless height setting of drill head features fi ne adjustment and gas pressure cylinder for counter balance
- Cross travel and height adjustment features scales and adjustable fences
- Robust steel construction eliminates vibrations
- Drill depth adjustable via scale and fence
- Height adjustment of drill head can be altered throughout vertical slotting
- Large grey cast iron table with polished surface
- Westcott drill chuck 0 - 20 mm complete with protective cover
Standard accessories Bernardo LBM 350 T Slot drilling machine:
- 2 pcs. eccentric holder
- 2 pcs. table extension
- Adjustable double mitre fence (30° - 90°)
- Template device
Technical specifications Bernardo LBM 350 T Slot drilling machine:
| Table size | 595 x 315 mm |
| Table extension | 2x 200 x 220 mm |
| Table height | 830 mm |
| Max. drill depth | 220 mm |
| Drill width | 340 mm |
| Height adjustment | 145 mm |
| Drill head tiltable right / left | -60° to +60° |
| Speed | 1400 / 2850 rpm |
| Westcott drill chuck | 0 - 20 mm |
| Motor power | 1,5 / 1,9 kW (2,0 / 2,6 HP) |
| Voltage | 400 V |
| Machine dimension (W x D x H) | 1200 x 1050 x 1300 mm |
| Weight approx. | 240 kg |
