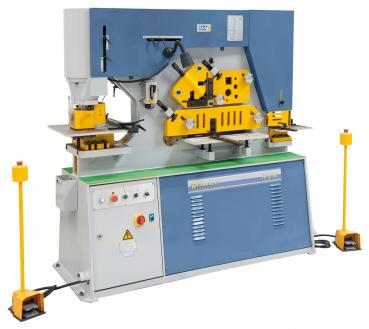

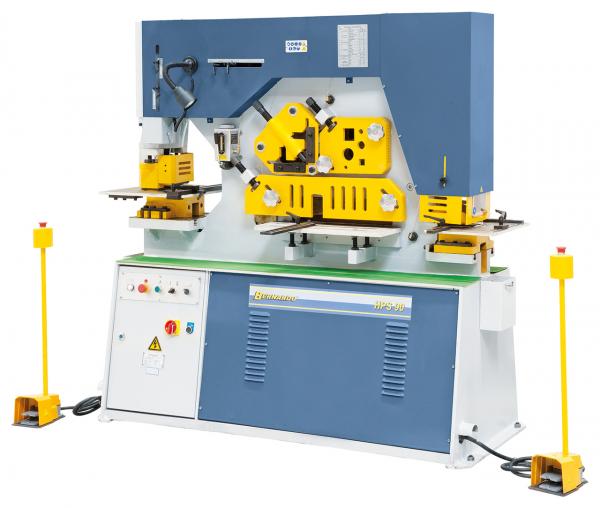

Bernardo Hydraulic Section Steel Shears HPS 90

Punching

Punching force

90 Tons

Max. Punching capacity

20 mm

Diameter x thickness

30 mm

Stroke length

80 mm

Stroke rate (20 mm stroke)

6 cpm

Outreach

355 mm

Max. Hole size (standard)

30 mm

Max. Hole size*

Φ 50 mm

Working height

1020 mm

Flat steel station

Flat steel max. thickness

20 mm

Flat steel max. width

330 mm

Knife length

485 mm

Angle profile

8°

Working height

910 mm

Profile steel station

90°

140 x 140 x 12 mm

45°

50 x 50 x 5 mm

Working height

1170 mm

U-profile/ I-profile*

160 x 60 x 6,5 / 160 x 86 x 6 mm

T-profile*

140 x 140 x 12 mm

70 x 70 x 10 mm

Bar steel scissors

Round profile

50 mm

Square profile

50 x 50 mm

Working height

1220 mm

Notching station

Material thickness

20 mm

Wide

330 mm

Rectangular notcher

57 x 100 mm

Triangular notcher

5 x 5 x 7,5 mm

Working height

915 mm

Engine power

5,5 kW

Machine dimension (W x D x H)

1860 x 800 x 1900 mm

Weight approx.

2500 kg

* optional
