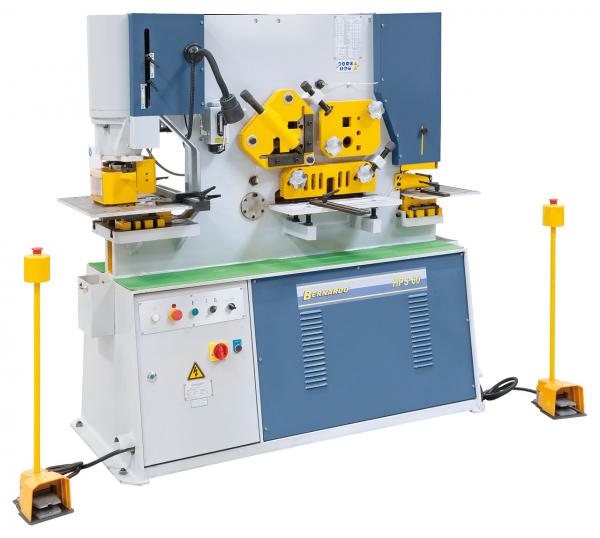

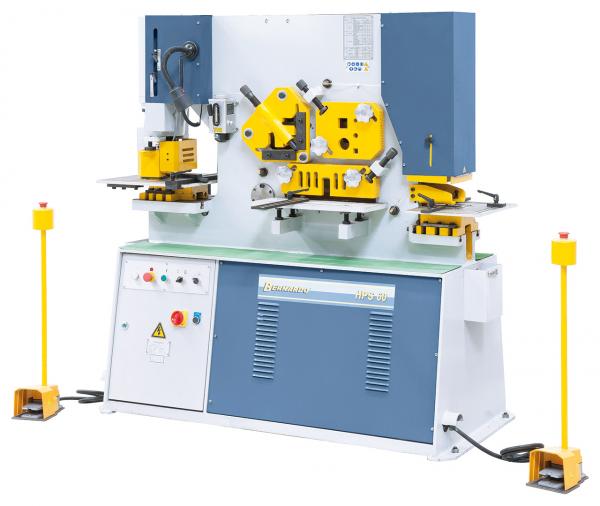

Bernardo Hydraulic Section Steel Shears HPS 60

Punching

Punching force

60 Tons

Max. Punching capacity

16 mm

Diameter x thickness

25 mm

Stroke length

80 mm

Stroke rate (20 mm stroke)

8 cpm

Outreach

300 mm

Max. Hole size (standard)

25 mm

Max. Hole size*

Φ 50 mm

Working height

970 mm

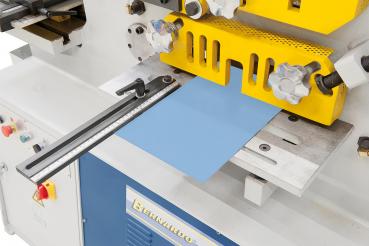

Flat steel station

Flat steel max. thickness

16 mm

Flat steel max. width

330 mm

Knife length

410 mm

Angle profile

7°

Working height

930 mm

Profile steel station

90°

125 x 125 x 12 mm

45°

50 x 50 x 5 mm

Working height

1130 mm

U-profile/ I-profile*

126 x 53 x 5,5 / 126 x 74 x 5 mm

T-profile*

125 x 125 x 12 mm

60 x 60 x 8 mm

Bar steel scissors

Round profile

45 mm

Square profile

40 x 40 mm

Working height

1185 mm

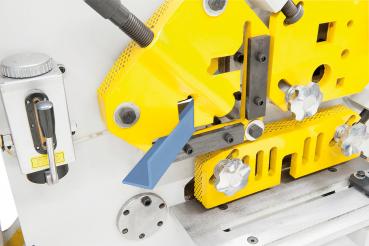

Notching station

Material thickness

16 mm

Wide

330 mm

Rectangular notcher

57 x 100 mm

Triangular notcher

5 x 5 x 7,5 mm

Working height

910 mm

Engine power

4 kW

Machine dimension (W x D x H)

1640 x 730 x 1770 mm

Weight approx.

1600 kg
