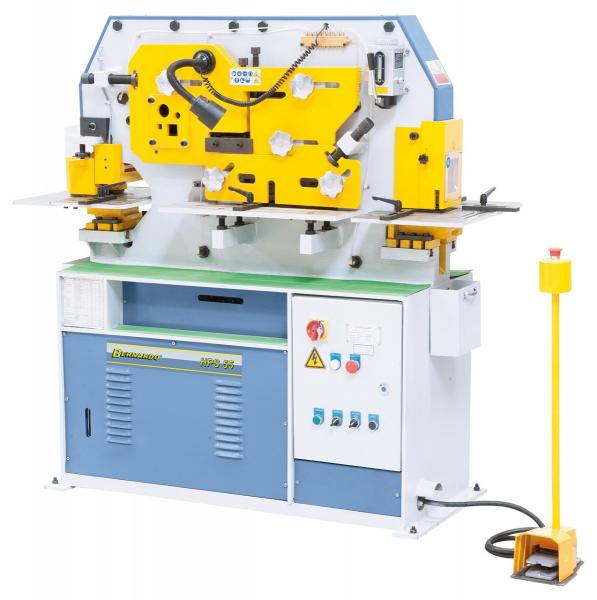

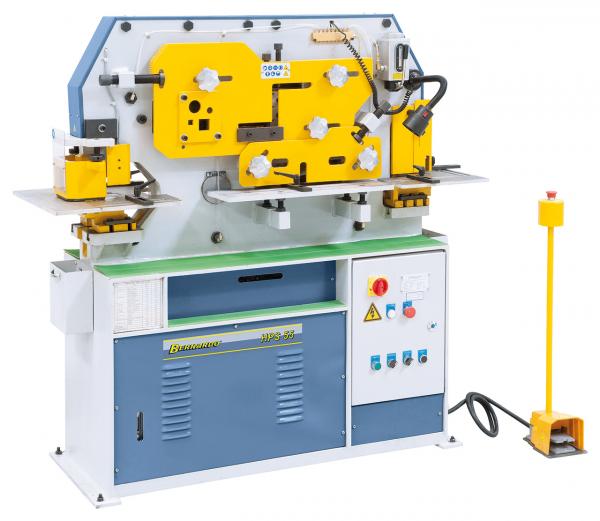

Bernardo Hydraulic Section Steel Shears HPS 55

Punching

Punching force

55 Tons

Max. Punching capacity

15 mm

Diameter x thickness

24 mm

Stroke length

60 mm

Stroke rate (20 mm stroke)

8 cpm

Outreach

200 mm

Max. Hole size (standard)

24 mm

Max. Hole size*

Φ 40 mm

Working height

930 mm

Flat steel station

Flat steel max. thickness

15 mm

Flat steel max. width

330 mm

Knife length

318 mm

Angle profile

7°

Working height

945 mm

Profile steel station

90°

120 x 120 x 12 mm

45°

60 x 60 x 6 mm

Working height

1100 mm

U-profile/ I-profile*

100 x 50 x 5 / 100 x 50 x 5 mm

T-profile*

120 x 120 x 12 mm

50 x 50 x 5 mm

Bar steel scissors

Round profile

40 mm

Square profile

35 x 35 mm

Working height

1125 mm

Notching station

Material thickness

15 mm

Wide

330 mm

Rectangular notcher

57 x 100 mm

Triangular notcher

4 x 4 x 6 mm

Working height

945 mm

Engine power

4 kW

Machine dimension (W x D x H)

1320 x 590 x 1620 mm

Weight approx.

1400 kg

* optional
