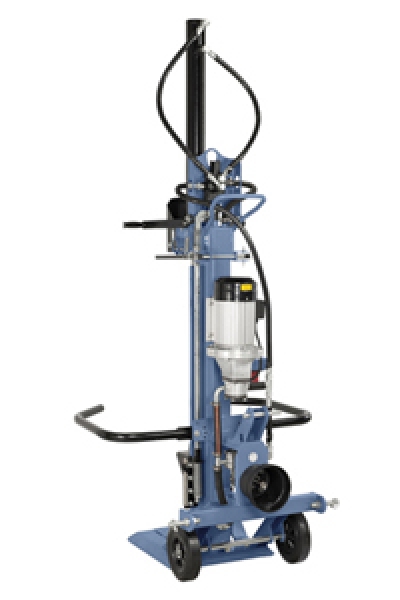

Bernardo HS 13 ZE wood splitter
Features Bernardo HS 13 ZE log splitter
The HS 13 ZE log splitter from Bernardo is equipped with a combined electric/pTO drive.
Sophisticated technical solutions such as the two-handed safety operation, the high forward speed for fast work, the infinitely adjustable splitting stroke distinguish this model.
- For splitting short logs and long logs up to 1100 mm
- Models equipped with electric/power take-off drive
- Scratch-resistant surface due to high-quality powder coating
- Large-size splitting wedge with stable, durable plastic guide
- Time-saving work due to infinitely adjustable splitting stroke
- Low base plate with flattened edge for easy loading of large logs
- Lowerable cylinder for space-saving storage and easy transport
- Powerful hydraulic system with high-quality pressure hoses
Scope of delivery Bernardo HS 13 ZE log splitter
- Two-hand safety operation
- 3-point hitch with pick-up pins
- PTO connection with cover
- Switch-plug combination
- Oil filling
- Chassis
- Splitting wedge
Available optional accessories Bernardo HS 13 ZE log splitter
- Splitting cross (Art.No.:14-1200)
Technical data Bernardo HS 13 ZE log splitter
| Max. Splitting force | 13 to |
| Gap length | 300 - 1100 mm |
| Travel of splitting wedge max. | 945 mm |
| Forward speed 1* | 2,9 m/min |
| Forward speed 2* | 7,4 m/min |
| Return speed* | 4,3 m/min |
| Hydraulic pressure | 25,4 Mpa |
| Hydrauliktank | 18 Liter |
| Drive | E-motor and PTO |
| Engine power S6 40% | 4,5 kW / 400 V |
| PTO shaft speed | 540 rpm |
| Tractor power | > 20 HP |
| Machine dimension (L x W x H) | 1110 x 1120 x 2510 mm |
| Weight approx. | 269 kg |
* Speed varies, as dependent on tractor power
