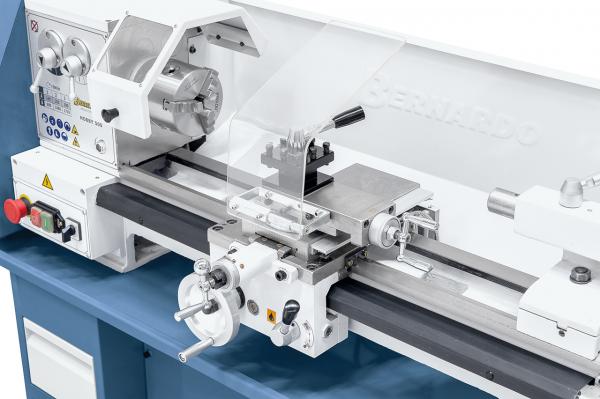

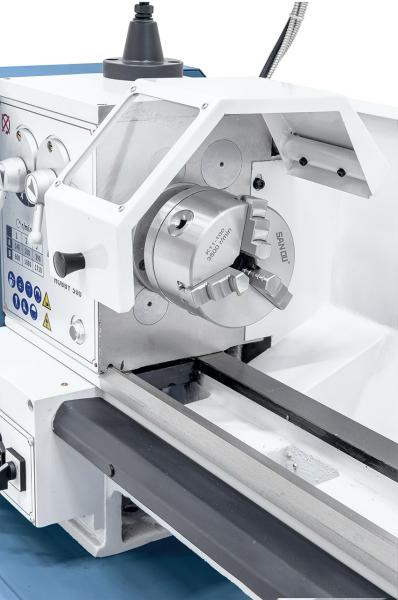

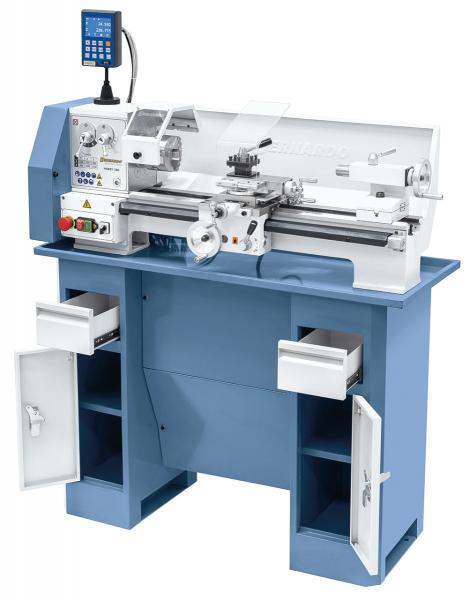

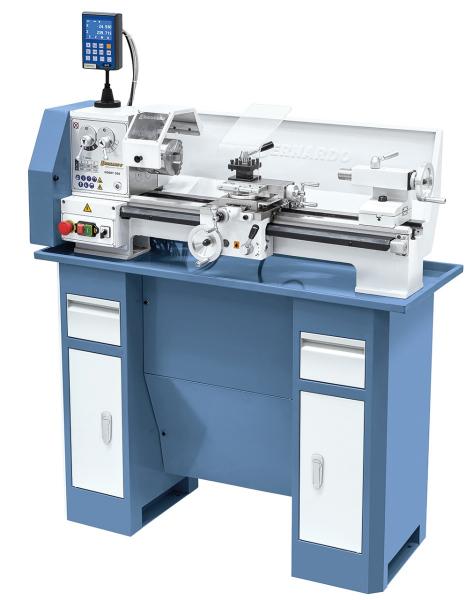

Product features Bernardo Hobby 500 400V table lathe incl. 2-axis digital display DT40

The precise bench lathe HOBBY 500 is equipped with a 6-step gearbox for quick speed change. Due to its compact design, this machine offers a high degree of running smoothness and thus guarantees precise work.

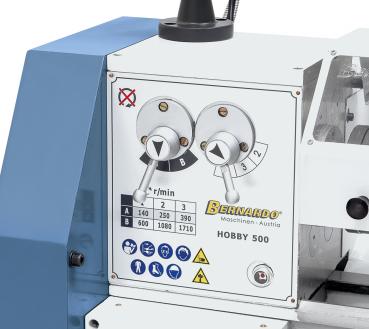

Simple and fast speed change due to gearbox
Prismatic bed inductively hardened and ground
Guides can be adjusted backlash-free via V-guides
Optimum price-performance ratio
Very handy machine with lead screw for thread cutting
Spindle mounted with 2 adjustable precision bearings
Tailstock can be moved for taper turning
Safety switch with undervoltage release
Compact small design

Scope of delivery Bernardo Hobby 500 400V bench lathe incl. 2-axis digital display DT40

Technical data Bernardo Hobby 500 400V table lathe incl. 2-axis digital display DT40

Peak width	500 mm
Centre height	110 mm
Swing diameter over bed	220 mm
Spindle bore	20 mm
Mounting in the spindle bore	MK 3
Speed range	140 - 1710 rpm, 6 steps
Longitudinal feed range	(4) 0.05 - 0.2 mm/rev
Metric threads	(11) 0,4 - 3 mm
Inch thread	(11) 8 - 28 Gg/1“
Pinole path	45 mm
Spindle sleeve holder	MK 2
Motor output power S1 100%	0,55 kW / 400 V
Motor input power S6 40%	0,80 kW / 400 V
Machine dimension (W x D x H)*	1150 x 480 x 420 mm
Weight approx.	130 kg

* without underframe
