Bernardo HCL 600 P lathe machine

Product No.:
10-1182
2-4 days 2-4 days (abroad may vary)
  • Spare parts supply
  • Top quality
  • Happy customers
  • Secure payment
  • Authorized dealers

Delivery: If you need the item very urgently, please ask in advance for the exact delivery time.

Weight:
125 kg per piece
1.619,18 EUR

19% VAT excl. Shipping costs

Ask about product
Description

Features Bernardo HCL 600 P lathe​

  • Robust tailstock with MK 2 holder and through-bore for machining long workpieces
  • Quick fixing of the tailstock to the machine bed by means of a quick clamping lever

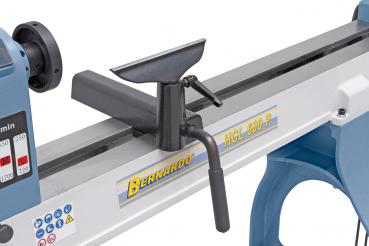

  • Including steel support, easily adjustable to different tool diameters
  • Heavy cast iron design for vibration-free operation
  • Easy setting of the desired speed via digital display
  • Equipped as standard with right/left rotation device
  • High concentricity accuracy due to precision-bearing main spindle
  • Smooth running and powerful DC drive, infinitely variable

Scope of delivery Bernardo HCL 600 P lathe​

  • Hand rest 200 mm
  • Clamping disk 100 mm
  • Travelling grain tip
  • Four-prong dog
  • Operating tool

Technical data Bernardo HCL 600 P lathe

Top of the range

600 mm

Center distance with extension*

1180 mm

Machining diameter



- via guideway

370 mm

- via support

270 mm

Spindle speeds, infinitely variable

250 - 720 rpm



550 - 1700 rpm



1200 - 3550 rpm

Speed stages

infinitely variable, 3 steps

Spindle thread

M 33 x 3,5 mm

Tailstock



Tailstock cone

MK 2

Sleeve adjustment

95 mm

Motor output power S1 100%

0,75 kW (1,0 PS)

Motor input power S6 40%

1,1 kW (1,5 PS)

Voltage

230 V

Machine dimensions (W x D x H)

1500 x 540 x 1180 mm

Weight approx.

125 kg

* optional
