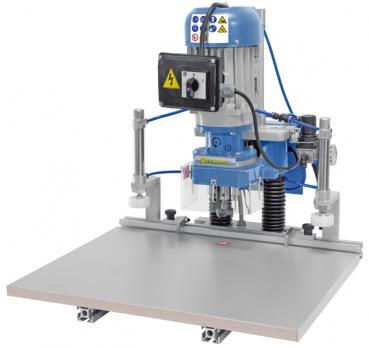

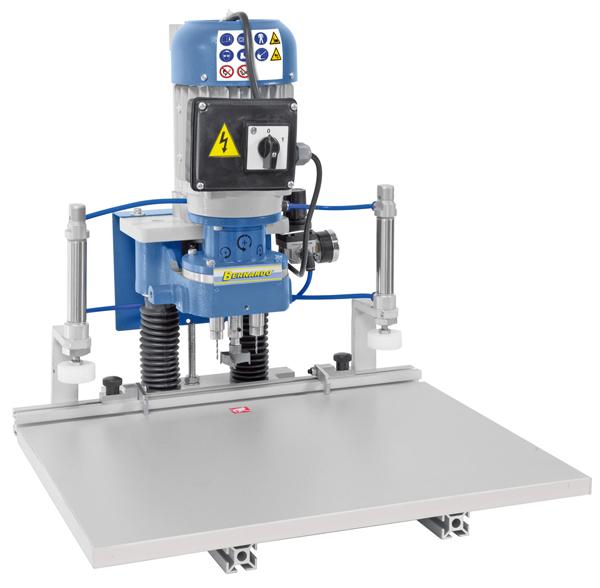

Bernardo Hardware drill BBM 35 P - Grass
Properties Bernardo Hardware drill BBM 35 P - Grass
- Comes complete with adjustable end stop depth of hole
- Powerful motor (0.75 kW) designed for continuous operation
- Excellent for drilling of hinges on furniture – Blum or Grass
- Features an extensive range of accessories
Standard accessories Bernardo Hardware drill BBM 35 P - Grass:
- Hinge drill diam. 35 mm left
- 2 pcs. drill diam. 2 mm right
- 3-spindle drilling unit
- Drilling unit with pneumatic feed
- 1,5 m fence with 2 stops
- 2 pcs. pneumatic downholder
- Air pistol
- Foot pedal
- Working table
Technical specifications Bernardo Hardware drill BBM 35 P - Grass:
| Drill diameter | 35 mm |
| Quantity of spindles | 3 pcs. |
| Control | pneumatic |
| Workpiece clamping | pneumatic |
| Distance table/spindle max. | 85 mm |
| Distance table/drill max. | 50 mm |
| Table size | 500 x 350 mm |
| Table moveable | 105 mm |
| Fence length (incl. extension) | 1500 mm |
| Necessary air pressure | 6 - 8 bar |
| Speed | 3000 rpm |
| Motor power | 0,75 kW |
| Voltage | 230 V |
| Machine dimension (W x D x H) | 500 x 520 x 500 mm* |
| Weight approx. | 25 kg |
* without sidewise fence
