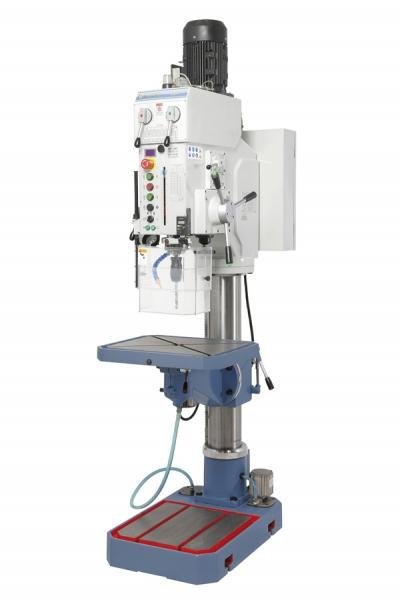

Bernardo geared table and pillar drilling machine GB 40 TH

• Including motorised table stroke and digital displays for drilling depth and speed
• Hand-scraped drilling table made of solid grey cast iron, swivels from -45° to +45

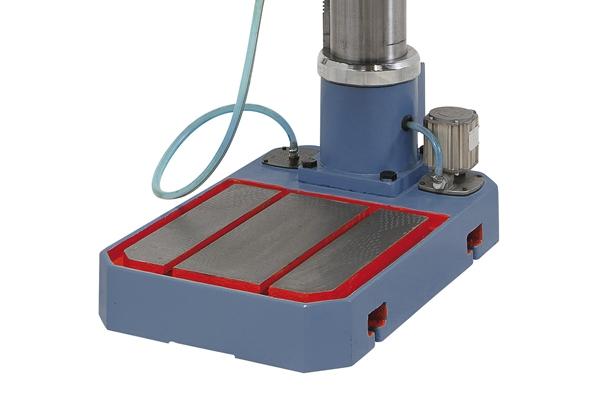

• T-slots in the machine base allow clamping of high workpieces
• Quick change of drilling tool by automatic tool ejector
• Electromechanical drill feed, adjustable from 0.1 - 0.4 mm/rev

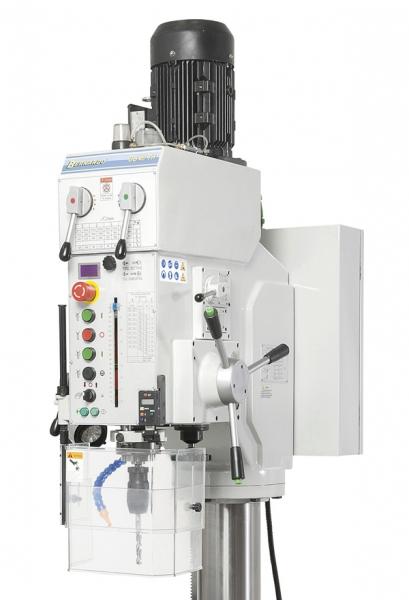

• Quick speed change by means of gear shift on the front side
• Adjustable drill depth stop with easy-to-read scale
• Protective cover with limit switch for increased safety
• Excellent illumination during work due to LED machine light

Scope of delivery Bernardo GB 40 TH geared table and pillar drilling machine​

• Drill chuck 1 - 13 mm / B 16
• Drill chuck mandrel MK 4 / B 16
• Reducing sleeve MK 4 / 3, MK 4 / 2

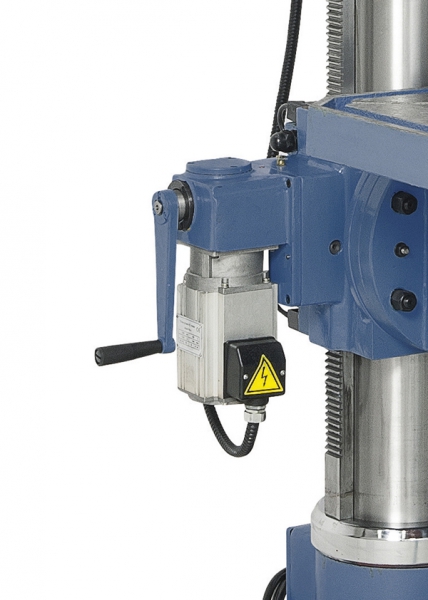

• Motorised table stroke
• Coolant device
• Tapping device
• Electromagnetic spindle feed
• Automatic mould ejector
• Initial filling with Shell Tellus 46
• LED machine light
• Digital speed display
• Digital drilling depth display
• Height-adjustable protective cover

Available optional accessories Bernardo GB 40 TH geared table and pillar drilling machine​

• Reducing bushing MK 4 / 2 (Art.No.:24-1024)
• Reducing bushing MK 4 / 3 (Art.No.:24-1025)
• Cone reamer MK 4 - MK 6 (Art.No.:24-1059)
• Cone wiper MK 4 (Art.No.:24-1062)
• Keyless drill chuck with shank MK 4, 1 - 16 mm (Art.No.:24-1073)
• Keyless drill chuck 1 - 16 mm / B 16 (Art.No.:24-1082)
• Tapping attachment MK 4, M 3 - M 12 (Art.No.:24-1091)
• Tapping attachment MK 4, M 12 - M 24 (Art.No.:24-1093)
• Clamping tool assortment 58 pcs, 14 mm, M 12 (Art.No.:28-1001)
• Drilling machine vice BMH 150 (Art.No.:28-2012)
• Industrial drill press vice BMI 150 (Art.No.:28-2017)
• Industrial drill press vice BMS 140 (Art.No.:28-2019)
• Industrial drilling machine vice BMS 200 (Art.No.:28-2020)
• Twist drill set 130 pcs, HSS TiN-coated (Art.No.:41-1024)
• Twist drill set 170 pcs, HSS TiN-coated (Art.No.:41-1025)
• Twist drills HSS with Morse taper MK 2 / 3, 9-pcs. - 14,5 - 30 mm, TiN-coated, set B (Art.No.:41-1051)
• Twist drills HSS with Morse taper MK 2 / 3 - 17-pcs. - 14,5 - 30 mm, set C (Art.No.:41-1055)
• Machine shoe MS 80 (Art.No.:53-2000)
• Universal coolant concentrate RK 12, in 5 l canister (Art.No.:54-1206)

Technical data Bernardo GB 40 TH geared table and pillar drilling machine​
