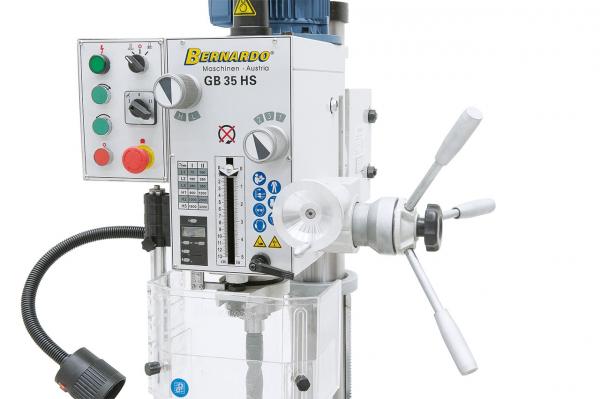

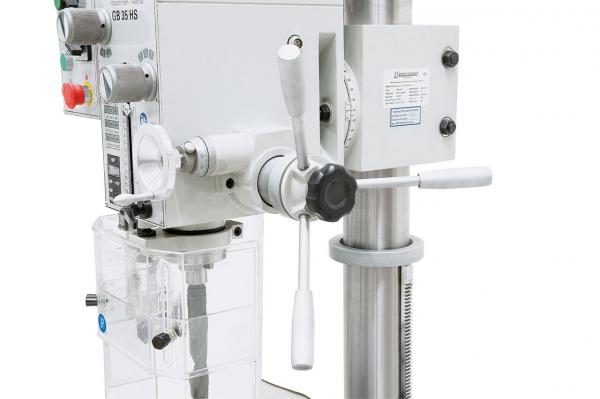

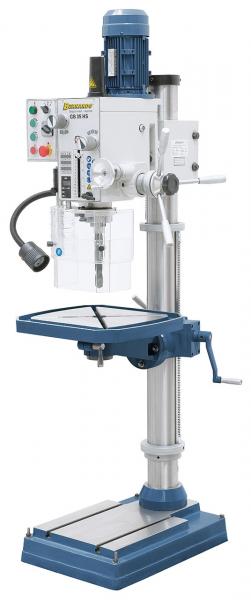

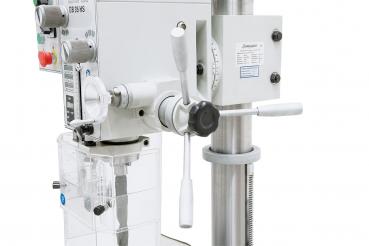

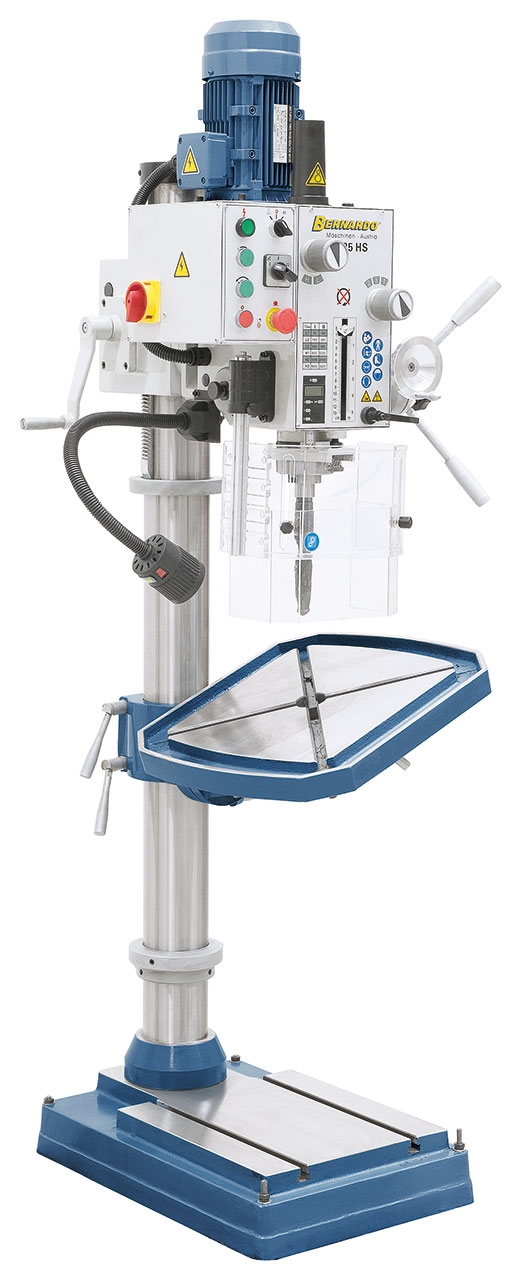

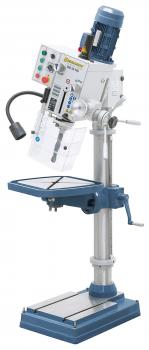

Bernardo Gear Drilling Machine - Column Drilling Machine GB 35 HS

The GB 35 HS geared column drilling machines are characterised by their robust and vibration-free design. Due to the rotatable and tiltable gear head, this machine is suitable for general workshop use.

Features Bernardo Gear Drilling Machine - Column Drilling Machine GB 35 HS​

•     2-step motor with 12 switchable speeds, speed range 75 - 3200 rpm
•     Standard with quick-action drill chuck 1 - 16 mm / B 16
•     Large dimensioned drilling table with T-slots and circumferential coolant trough
•     Machined machine base for clamping particularly high workpieces
•     Simple and fast speed change by means of a shift lever
•     Gear head 180° swivelling, 360° rotating and height adjustable
•     Smooth running due to ground gear wheels running in an oil bath
•     Manual rough feed to manual fine feed switchable by means of coupling
•     Right-/left-handed device for thread cutting
•     Standard with digital display for quill infeed

Scope of delivery Bernardo Gear Drilling Machine - Column Drilling Machine GB 35 HS​
