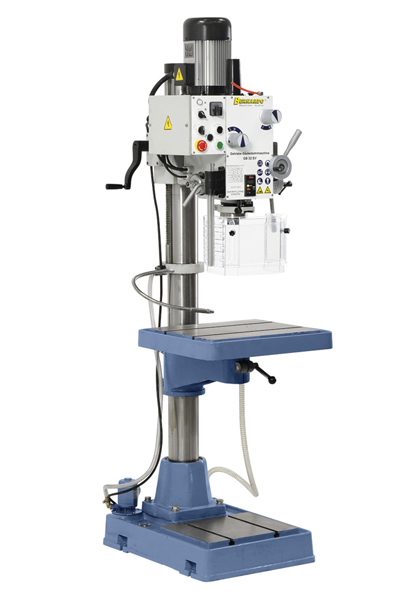

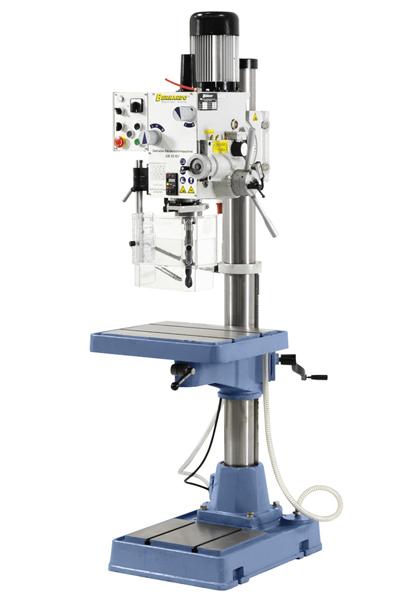

Bernardo Gear Drilling Machine - Column Drilling Machine GB 32 SV

• With automatic quill feed as standard
• Machined machine base for clamping particularly high workpieces
• 2-stage motor with 12 switchable speeds
• Standard with quick-action drill chuck 3 - 16 mm / B 18
• Large-dimensioned drilling table with T-slots
• Easy and fast speed change by means of a switch lever

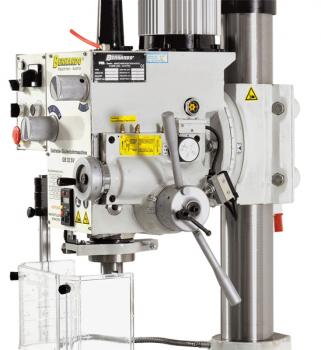

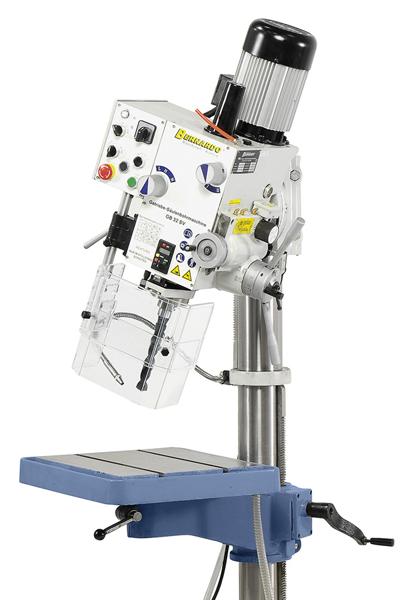

• Gear head 180° swivelling, 360° rotatable and height adjustable
• Smooth running due to ground gear wheels running in an oil bath
• Manual coarse feed can be switched to manual fine feed by means of a clutch
• Right-hand and left-hand rotation for thread cutting

Scope of delivery Bernardo Gear Drilling Machine - Column Drilling Machine GB 32 SV​

• Keyless drill chuck 3 - 16 mm / B 18
• Drill chuck mandrel MK 4 / B 18
• Coolant device
• Reducing sleeve MK 4 / 3, MK 3 / 2
• Height-adjustable protective cover
• Digital drill depth display
• Tapping device

Available special accessories Bernardo Gear Drilling Machine - Column Drilling Machine GB 32 SV​

• Reducing bushing MK 4 / 2 (Art.No.:24-1024)
• Reducing bushing MK 4 / 3 (Art.No.:24-1025)
• Cone reamer MK 4 - MK 6 (Art.No.:24-1059)
• Tapping attachment SUPER MK 4 - MK 6 (Art.No.:24-1096)
• Clamping tool assortment 58 pcs, 14 mm, M 12 (Art.No.:28-1001)
• Drilling machine vice BM 200 with prism jaws (Art.No.:28-2002)
• Drilling machine vice BMO 200 with prism jaws (Art.No.:28-2009A)
• Industrial drill press vice BMI 150 (Art.No.:28-2017)
• Industrial drilling machine vice BMS 140 (Art.No.:28-2019)
• Twist drill set 130 pcs, HSS TiN-coated (Art.No.:41-1024)
• Twist drill set 170 pcs, HSS TiN-coated (Art.No.:41-1025)
• Twist drills HSS with Morse taper MK 2 / 3, 9-pcs. - 14,5 - 30 mm, TiN-coated, set B (Art.No.:41-1051)
• HSS core drill set, 14 - 24 mm, drilling depth 25 mm, 6 pcs. (Art.No.:41-1101)
• HSS core drill set, 14 - 24 mm, drilling depth 50 mm, 6 pcs. (art.no.:41-1102)
• Quick-change f. core drill (Art.No.:53-1060)
• Universal coolant unit with metal container 11 litres - 400 V (Art.No.:51-1000)
• Universal coolant unit with plastic container 10 litres - 230 V (Art.No.:51-1003)
• Universal coolant concentrate RK 12, 5 litre canister (Art.No.:54-1206)

Technical data Bernardo Gear Drilling Machine - Column Drilling Machine GB 32 SV​
