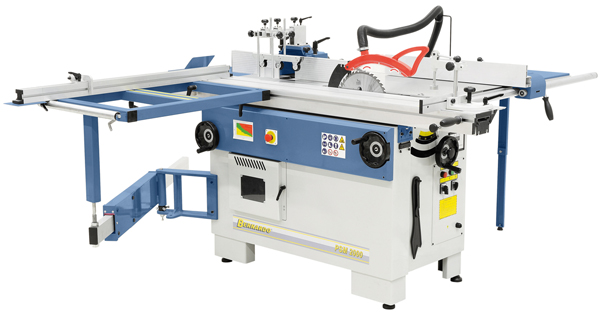

Bernardo format circular saw milling machine PSM 2000 / 400 V
TOP
Properties Bernardo format circular saw milling machine PSM 2000 / 400 V
- Square table with roller for convenient handling of larger workpieces
- Telescopic-longitudinal fence comes complete with end stop feat. fine adjustment
- Quick and easy readout of spindle speed on digital display
- Solid moulding fence features finely adjustable aluminium fence rails
- Large, grey cast-iron moulder unit, tilts from 0° to -45°
- Important feature: Sawblade 315 mm can be used when scoring unit is mounted
- Machine body consists of torsion-free combination of steel and grey cast iron
- Solid square table allows processing of oversize, heavy sheet material without additional support
Standard accessories Bernardo format circular saw milling machine PSM 2000 / 400 V:
- End stop
- Moulding fence
- Protective and pressing device
- Table extension and enlargement
- Extractable telescopic fence
- Scoring sawblade 90 x 20 x 3 mm / 13T
- Protective cover with dust extraction outlet and tube
- Mitre fence with eccentric holder
- End stop with fine adjustment
- Square table with roller
- Carbide sawblade 315 x 3,0 x 30 mm / 40T
- Digital speed indication of moulding spindle
- Spindle with left and tright turning
- Push stick
- Tools
Technical specifications Bernardo format circular saw milling machine PSM 2000 / 400 V:
Circular saw |
|
Table size | 1300 x 380 mm |
Table height | 970 mm |
Table extension | 350 x 310 mm |
Table enlargement | 800 x 880 mm |
Square table with roll | 940 x 580 mm |
Sliding table | 2000 x 270 mm |
Cutting length | 2000 mm |
Max. sawblade diameter | 315 x 30 mm |
Max. cutting height 90°/ 45° | 100 / 80 mm |

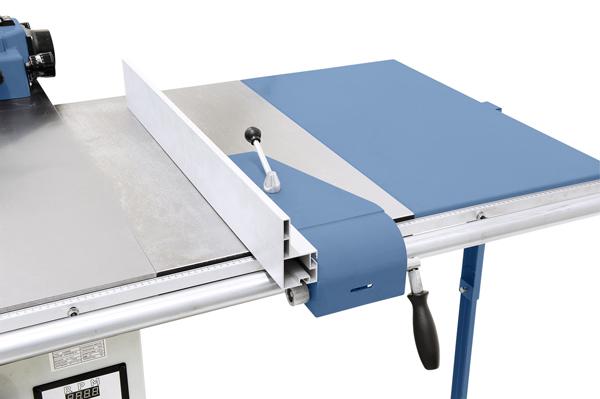

Cutting width on rip fence | 1220 mm |
Speed main sawblade | 4500 rpm |
Speed scoring sawblade | 8500 rpm |
Scoring sawblade | 90 x 20 mm |
Dust extraction outlet | 95 mm |
Motor power output S1 100% | 3,0 kW (4,0 HP) |
Motor power input S6 40% | 4,2 kW (5,7 HP) |
Spindle moulder |
|
Spindle diameter | 30 mm |
Height adjustment | 140 mm |
Spindle tiltable | 0° to 45° |
Table opening | 200 mm |
Working length of spindle | 110 mm |
Max. tool diameter | 180 mm |
Spindle speed | 1800 / 3000 / 6000 / 9000 rpm |
Motor power output S1 100% | 2,8 kW (3,8 HP) |
Motor power input S6 40% | 3,9 kW (5,3 HP) |
Voltage | 400 V |
Machine dimension (W x D x H) | 2000 x 2900 x 1260 mm |
Weight approx. | 425 kg |
