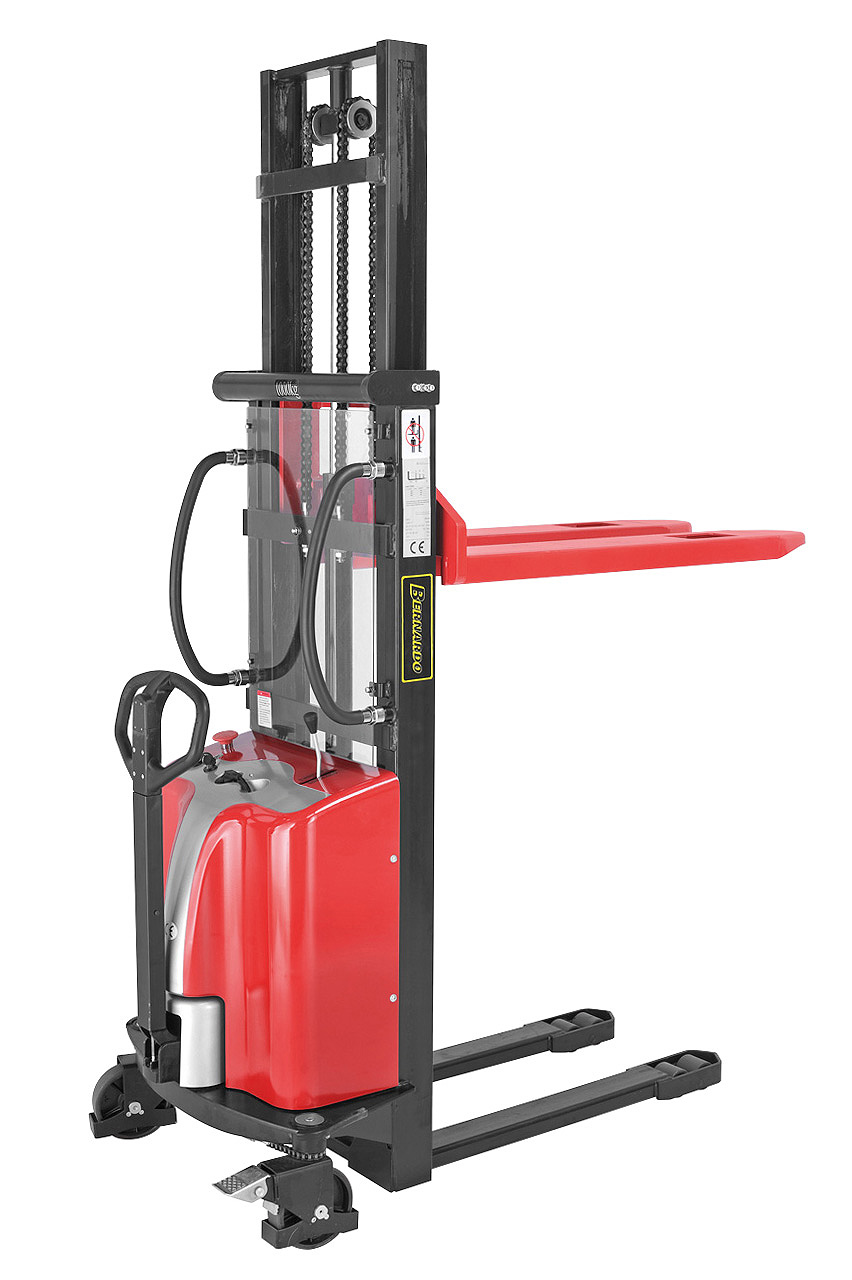

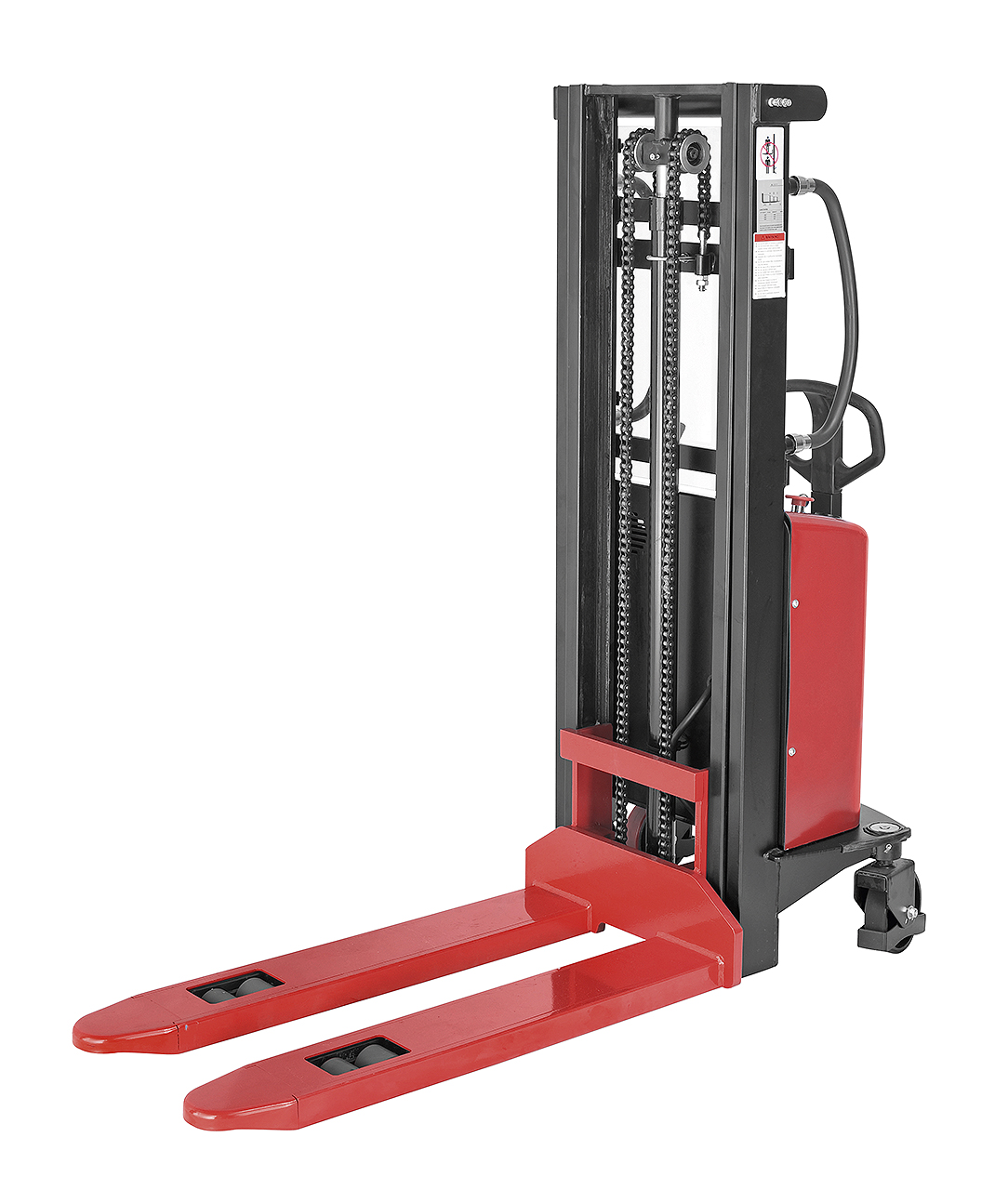

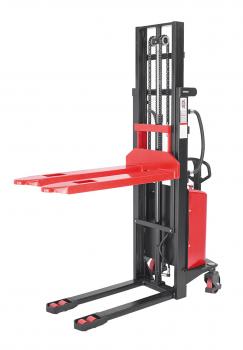

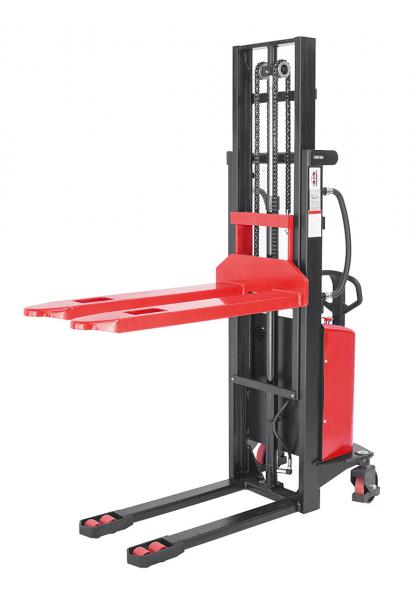

Bernardo EHS 1000 - 3.0 Electric forklift

Load capacity

1000 kg

Load centre

600 mm

Lifting height min.

85 mm

Max. lifting height

3000 mm

Fork length

1140 mm

Fork width

180 mm

Fork width

60 mm

Support width

570 mm

Clear fork width

210 mm

Turning radius

1280 mm

Lifting speed with load / without load

90 / 140 mm/sec.

Lowering speed with load / without load

120 / 100 mm/sec.

Swivel castor dimensions

Ø 180 x 50 mm

Fork roller dimensions

Ø 74 x 70 mm

Wheelbase

1160 mm

Hoist motor

1,5 kW

Battery voltage

12 V

Length

1720 mm

Width

780 mm

Height (mast retracted / extended)

2080 / 3570 mm

Weight incl. battery

495 kg
