Bernardo DMC 32 VC column drilling machine
Features Bernardo DMC 32 VC column drilling machine
The powerful column drill DMC 32 VC is characterized by its robust and vibration-free design. This model is used in repair shops, mechanical workshops, but also in the training sector.
- Protective cover according to CE standard, adjustable to the respective drill bit length

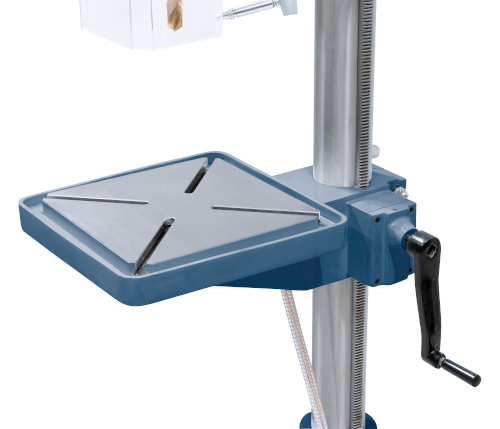

- Surface-treated worktable, height adjustable via gear rack and crank handle
- Ground base plate with T-slots for clamping high workpieces
- With automatic quill feed as standard
- Adjustable drilling depth stop for exact positioning of the sleeve
- Guaranteed concentricity ≤ 0.02 mm measured in the sleeve
- Powerful drive motor even in continuous operation
- Robust and powerful drills for heavy-duty use
- Including automatic reversal of rotation direction for thread cutting
Scope of delivery
- Gear rim drill chuck 5 - 20 mm / JT3
- Drill chuck arbor MK 3 / JT3
- Reducing sleeve MK 3 / 2
- Automatic spindle sleeve feed
- Coolant system
- Digital speed indicator
- Thread cutting device
- LED machine light
- Height-adjustable protective cover
Technical data Bernardo DMC 32 VC column drilling machine
| Max. drilling capacity | 32 mm |
| Thread cutting max. | M20 |
| Morse taper | MK 3 |
| Spindle speed | (5) 320 - 1820 rpm |
| Invitation | 265 mm |
| Distance spindle / table max. | 815 mm |
| Distance spindle / base plate | 1240 mm |
| Sleeve stroke | 150 mm |
| Sleeve feed | 0 - 110 mm/min |
| Column diameter | 100 mm |
| Table size / T-slot size | 332 x 332 mm / 14 mm |
| Work surface Base plate | 382 x 312 mm |
| Motor output power S1 100% | 1.5 kW / 400 V |
| Motor input power S6 40% | 2.2 kW / 400 V |
| Machine dimensions (W x D x H) | 570 x 940 x 1950 mm |
| Weight approx. | 352 kg |
