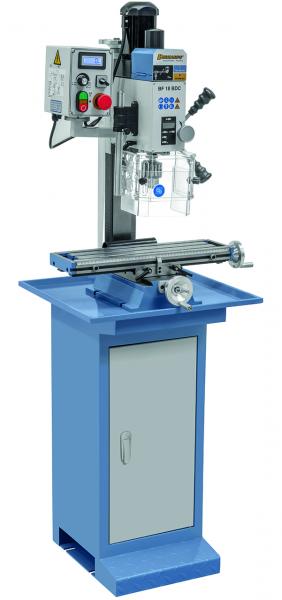

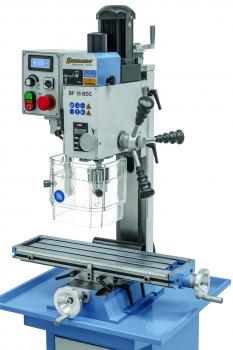

Bernardo BF 18 BDC drilling and milling machine

Product features Bernardo BF 18 BDC drilling and milling machine

The BF 18 BDC drilling and milling machine is equipped with a high-quality DC motor as standard. The main advantages of this are the high torque in the lower speed range and the almost constant speed under load. This model is mainly used by professional users, in model making, but also in training.


• Variable speed setting, speed can be continuously adjusted to suit the workpiece
• Versatile applications, e.g. slot milling, face milling, boring, etc.

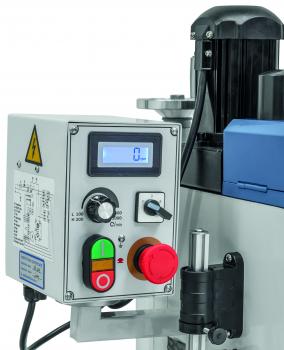

• Digital speed and drilling depth display included in delivery
• Standard with clockwise/anti-clockwise rotation, ideal for thread cutting

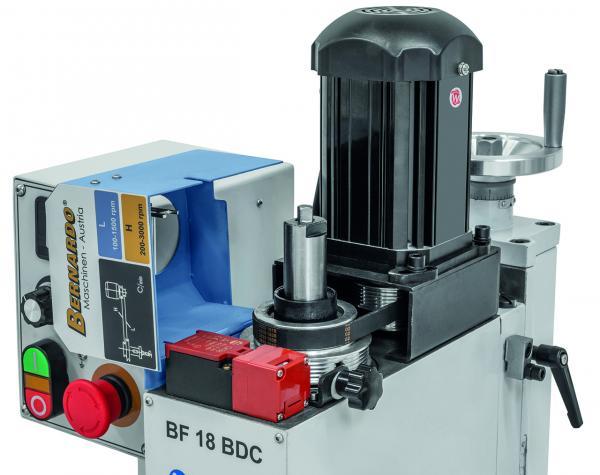

• DC motor for optimum torque in the lower speed range
• Dovetail guide for x, y and z axes, adjustable via wedge strips
• High concentricity (≤0.015 mm) of the quill thanks to precision bearings
• Milling head can be swivelled on both sides for angle drilling, chamfering, etc.
• Large cross table with T-slots, precision surface finish
• Quill adjustment via handle, fine adjustment via handwheel

Scope of delivery Bernardo BF 18 BDC drilling and milling machine

• Keyed chuck 3 - 16 mm / B 16
• Chuck mandrel MK 2 / B 16
• Tightening spindle M 10
• Digital speed display
• Digital quill stroke display
• EMC filter according to CE standard
• Height-adjustable protective cover
• Operating tool

Technical data Bernardo BF 18 BDC drilling and milling machine
