Bernardo belt sander MS 75x2000 BR-2 400V
NEW
Product features Bernardo belt sander MS 75x2000 BR-2 400V
Compared to the S-2 model, the MS 75 x 2000 BR-2 is equipped with a larger drive wheel, which increases the belt speed. The powerful drive motor and robust design make this model ideal for professional use in workshops and for the production of small batches.
- Both models with 2 speeds as standard, ideal for sanding stainless steel
- Universally applicable for sanding edges, surfaces and cylindrical sanding
- Graphite coating on the face sanding surface increases the sliding properties of the sanding belt
- Consistent belt tension thanks to spring-loaded tensioning device
- User-friendly belt change, quick and easy
- Good sanding performance thanks to high belt speed
- Quick adjustment for horizontal and inclined position
- Universally applicable for trade and industry
- Large face sanding surface with protective cover
- Includes fine adjustment for parallel belt tracking
Scope of delivery Bernardo belt sander MS 75x2000 BR-2 400V
- Sanding belt K 60
- Hinged protective disc
- Sanding and support table
- Workpiece stop
- Dust extraction nozzle
- Motor protection switch

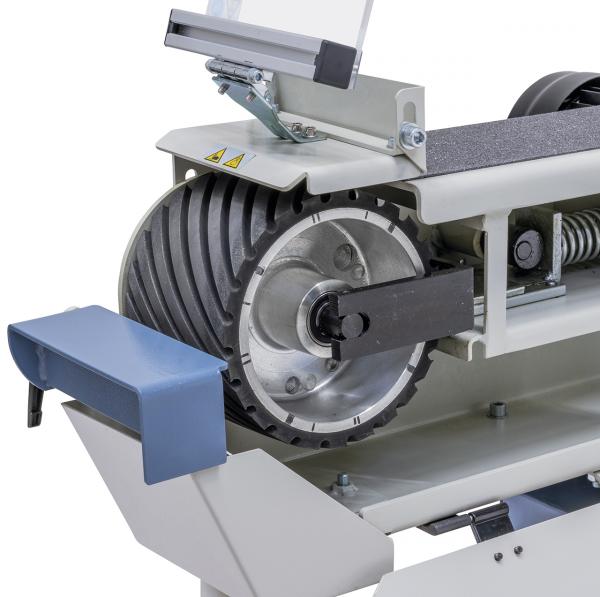

- Rubberised sanding drum
- Graphite coating
- Separate emergency stop button
- Base frame
Technical data Bernardo belt sander MS 75x2000 BR-2 400V
Belt dimensions | 75 x 2000 mm |
Belt speed | 18 / 36 m/sek. |
Contact disc Ø x B | 200 / 75 mm |
Surface grinding table | 490 x 75 mm |
Suction connection Ø | 100 mm |
Motor output power S1 100% | 3,0 / 4,0 kW |
Motor power consumption S6 40% | 4,2 / 5,4 kW |
Voltage | 400 V |
Length | 1020 mm |
Width | 510 mm |
Height | 1160 mm |
Weight approx. | 82 kg |
