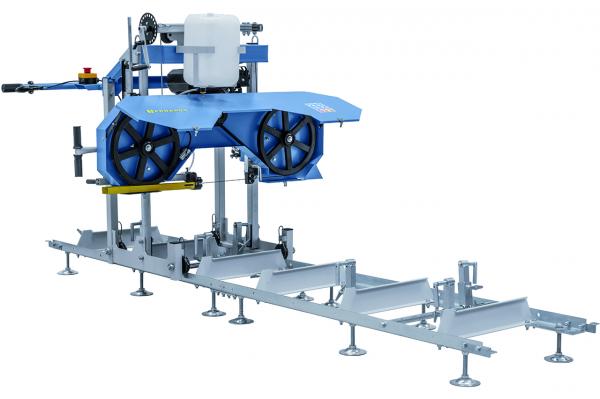

Bernardo BBS 400 B log band saw with petrol engine
NEW
Product features Bernardo BBS 400 B log band saw with petrol engine
The log band saws in the BBS series are available with either an electric drive or a petrol engine. The electric version is mainly used in a stationary application, while the petrol-powered model is ideal for mobile use. Thanks to their excellent price-performance ratio, these machines are ideal for farmers, forest owners, carpenters, etc.

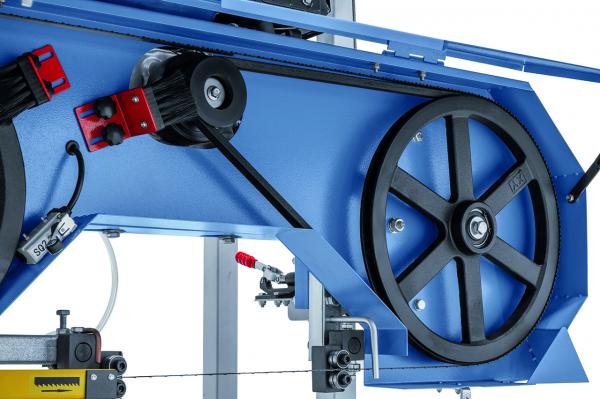

- Dynamically balanced drive wheels made of grey cast iron ensure smooth running.
- For processing round timber into boards, planks and beams.
- Optional bed extensions available for any cutting length.
- Suitable for cutting both softwood and hardwood logs

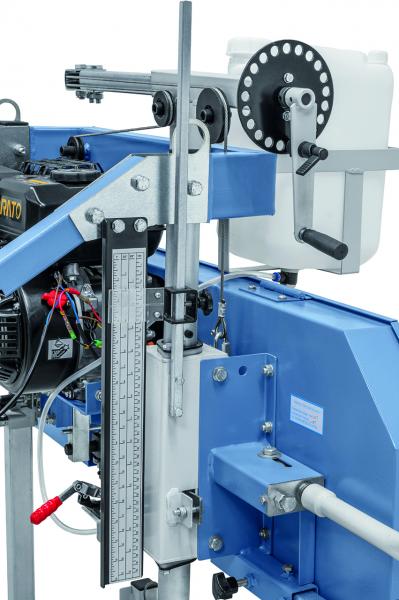

- Manual feed and height adjustment of the saw unit
- Includes coolant tank and metering tap for optimum lubrication and cooling of the saw blade

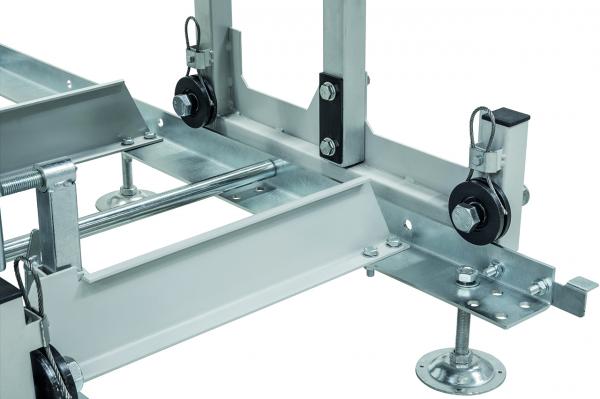

- Easy fixing of the tree trunk thanks to adjustable stops

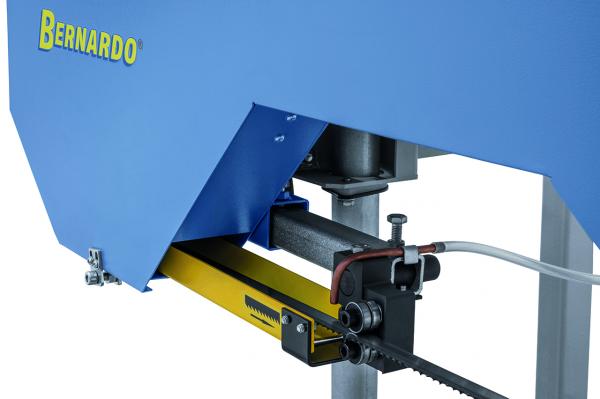

- Saw unit is suspended and guided on both sides
Scope of delivery Bernardo BBS 400 B log band saw with petrol engine
- HSS saw blade 2750 x 19 x 0.9 mm
- Petrol engine
- Bed extension for cutting length max. 2.35 m
- 2 pcs. log clamping devices
- Coolant tank
Technical data Bernardo BBS 400 B log band saw with petrol engine
| Sawing |
|
| Max. log diameter | 400 mm |
| Max. board width | 385 mm |
| Max. cutting height | 380 mm |
| Min. cutting height | 50 mm |
| Max. cutting depth | 155 mm |
| Cutting length, basic version | 2350 mm |
| Extension (optional) | 1500 mm |
| Max. cutting length | Unlimited |
| Min. cutting length | 550 mm |
| Feed | manual |
| Wheel diameter | 350 mm |
| Wheel width | 25 mm |
| Saw blade | 2750 x 19 x 0.9 mm |
| Saw blade speed | 840 m/min |
| Motor Data |
|
| Motor power | 5.1 kW (7.0 hp) |
| Voltage | - |
| General Dimensions |
|
| Machine dimensions W x H x L (basic version) | 1350 x 1350 x 3045 mm |
| Weight |
|
| Weight approx. | 150 kg |
| Extension weight approx. | 26 kg |
