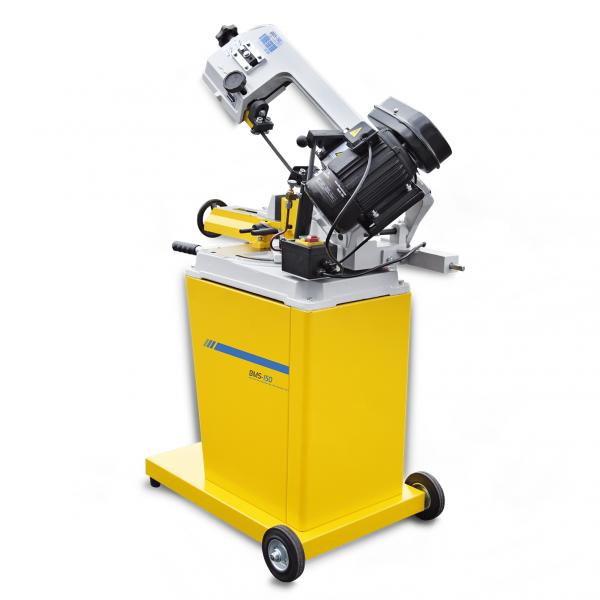

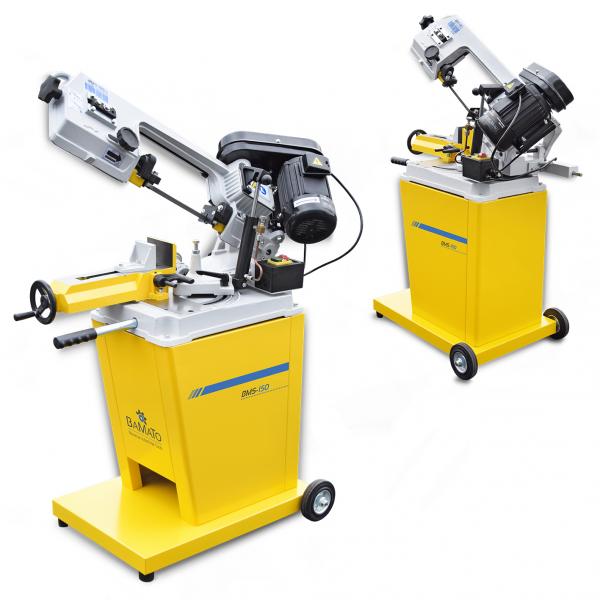

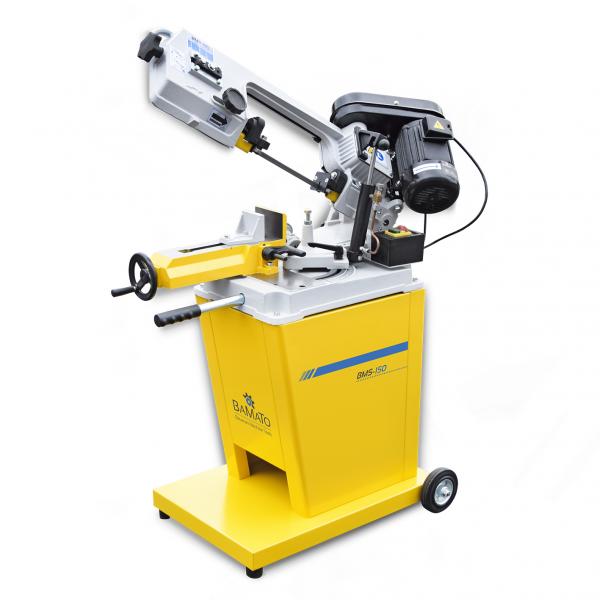

BAMATO metal band saw BMS-150 (230V)

Product highlights BAMATO metal band saw BMS-150 (230V)

• Stable base frame with chassis and extendable handle
• comfortable working height of 740 mm
• Stable and torsion-resistant saw bow
• Equipped with automatic limit stop as standard

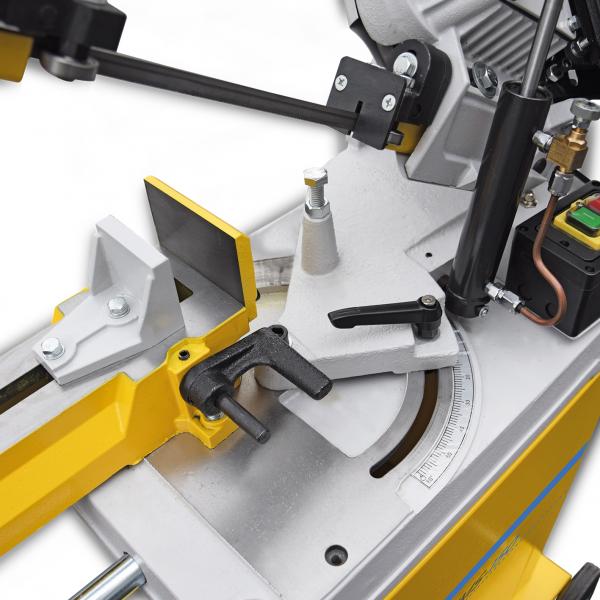

• vice with quick adjustment and workpiece stop
• Ball bearing saw blade guide for perfect cutting results
• Smooth and vibration-free running thanks to solid cast iron construction
• 3 saw band speeds adjustable via V-belt
• infinitely variable, hydraulic lowering of the saw bow
• Swivelling saw unit -45° to +60° for double mitre cuts
• Scope of delivery includes 1 x saw band

Technical facts BAMATO metal band saw BMS-150 (230V)

• Width: 560 mm
• Height: 1120 mm
• Length: 1000 mm
• Weight machine (kg): 87
• Weight with packaging (kg): 90

• Dimensions package 1 (L/W/H): 940 x 450 x 540 mm
• Dimensions package 2 (L/W/H): 650 x 450 x 260 mm
• Number of packages: 2
• Shipping weight: 90,00 kg
• Mode of dispatch: forwarding agent

Technical data BAMATO metal band saw BMS-150 (230V)

• Motor power S1: 550 watt
• Motor power S6: 825 watts
• Voltage: 230 V / 50 Hz
• Saw band length: 1638 mm
• Saw band width: 13 mm
• Saw band thickness: 0.65 mm
• Saw band speed: 24 / 35 / 55 m/min.
• Pivoting range: - 45° to + 60°.
• Cutting capacity square 45°: 90 x 90 mm
• Cutting capacity square 60°: 55 x 55 mm
• Cutting capacity square 90°: 100 x 100 mm
• Cutting capacity rectangular 45°: 75 x 90 mm
• Cutting capacity rectangular 60°: 55 x 55 mm
• Cutting capacity rectangular 90°: 100 x 150 mm
• Cutting capacity round Ø 45°: 90 mm
• Cutting capacity round Ø 60°: 55 mm
• Cutting capacity round Ø 90°: 128 mm
