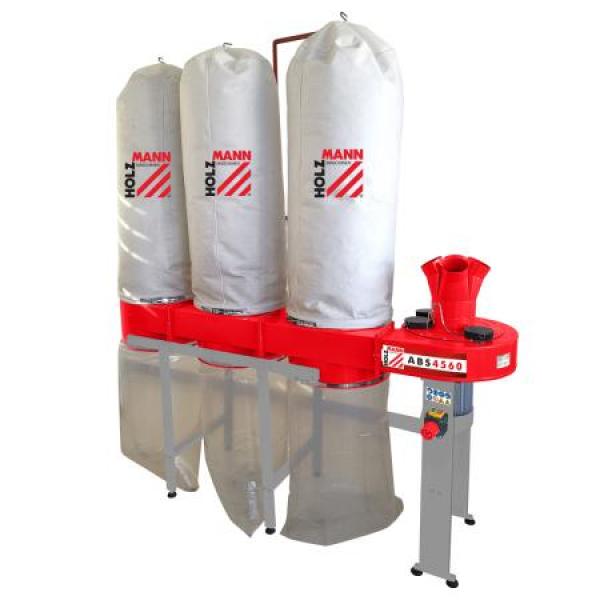

ABS4560400V Holzmann extraction system incl. connection distributor

Product highlights ABS4560400V Holzmann extraction system incl. connection distributor​

• solid sheet metal construction and ideal flow conditions
• resistant metal fan wheel
• large chip bags guarantee long change intervals
• high performance with low space requirement
• constant extraction performance
• high suction capacity due to large filter surfaced

Scope of delivery ABS4560400V Holzmann extraction system incl. connection distributor​

• 1x suction connection adapter 4xø100mm;
• 3x filter and chip bag,
• 3x rubber caps for suction connection adapter (ø 100mm)

Technical data ABS4560400V Holzmann extraction system incl. connection distributor​

• Motor power S1 in W: 3800
• voltage: 400V / (50Hz)

• max. height in mm: 2300
• Extraction connection in mm: 1 x ø180 / 4 x ø100
• Installation dimensions in mm: 2150 x 620 x 2300
• Gross weight in kg: 125

• Negative pressure in Pa: 2500
• Wind vane wheel diameter in mm: 356
• Chip bag length in mm: 850
• Chip bag diameter in mm: 500
• Chip bag volume in L: 3x160
• Extraction capacity in m³/h: 4560

• Sound power level in dB(A): 96
• Sound pressure level in dB(A): 86.7
