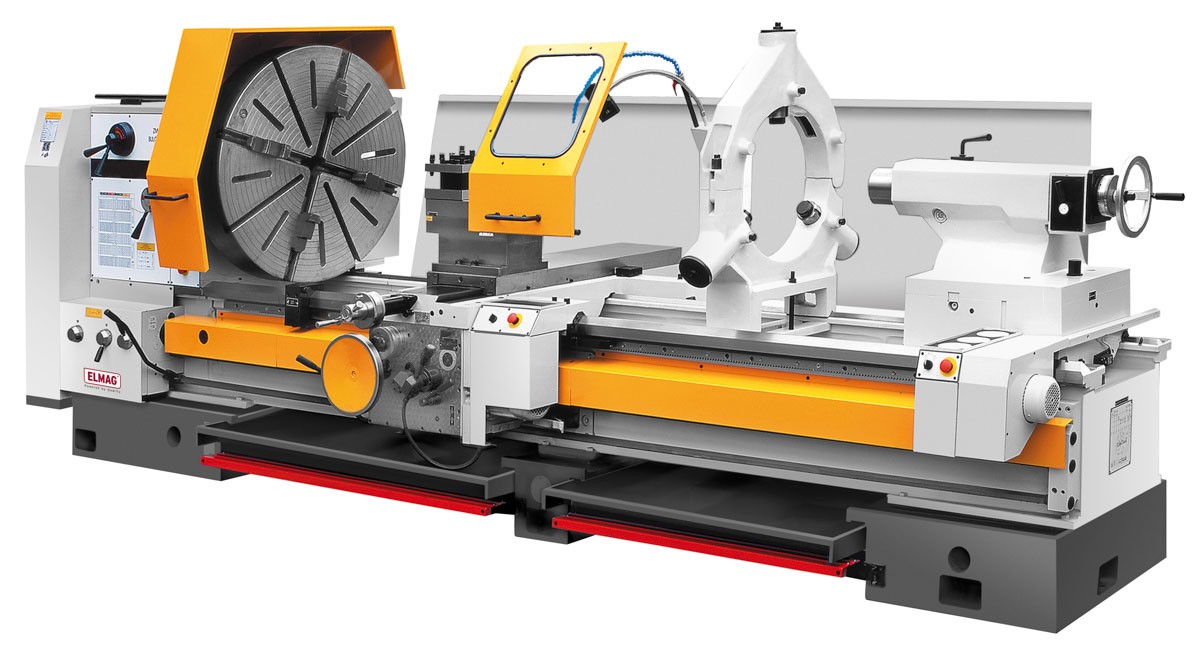

ELMAG PREMIUM CU 1320 Universal lathe Center distance 1500mm
Product highlights ELMAG PREMIUM CU 1320 Universal lathe Center distance 1500mm
HIGH CLASS MODELS FOR DEMANDING TURNING JOBS!
Our universal lathes and lathes with infinitely variable speed control of the PREMIUM CU series have a wide range of features and accessories for customers in various industries.
The PREMIUM CU series allows the cutting speed to be precisely matched to the material and turning diameter - particularly advantageous for non-ferrous metals, plastics and for the perfect surface finish on precision parts and fits.

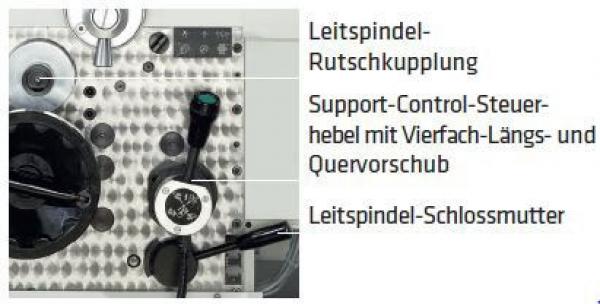

Interesting special features are the R/L control units mounted on the tool slides, by means of which the clockwise or counterclockwise rotation of the turning spindle is easily controlled. They replace the indexing shafts usually found on universal lathes.
Efficient handling is provided by electromechanical spindle brakes for super-fast turning spindle stopping. The leadscrews are equipped with overload protection.
Our universal lathes and lathes with infinitely variable speed control of the PREMIUM CU series have a wide range of features and accessories for customers in various industries.
The PREMIUM CU series allows the cutting speed to be precisely matched to the material and turning diameter - particularly advantageous for non-ferrous metals, plastics and for the perfect surface finish on precision parts and fits.
Interesting special features are the R/L control units mounted on the tool slides, by means of which the clockwise or counterclockwise rotation of the turning spindle is easily controlled. They replace the indexing shafts usually found on universal lathes.
Efficient handling is provided by electromechanical spindle brakes for super-fast turning spindle stopping. The leadscrews are equipped with overload protection.
Technical facts ELMAG PREMIUM CU 1320 Universal lathe Center distance 1500mm
- Standards Series PREMIUM CU:
- Heavy grey cast iron machine bed, good vibration damping
- Removable bridge
- Prismatic guides
- turning spindle hardened and precision ground, high concentricity, adjustable precision bearings
- Smooth running turning spindle and feed gear with oil bath
- Gear wheels made of chrome nickel steel, hardened and precision ground
- Feed reverse switch
- Covered trapezoidal thread lead screw, hardened, precision ground
- Tool slide with lock nut
- Precise carriage guides, adjustable
- Solid tailstock with tapered rotary displacement
- lathe accuracy to DIN

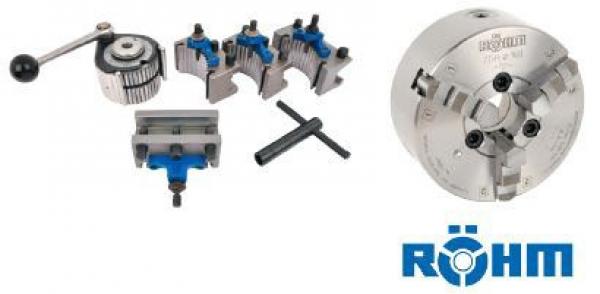

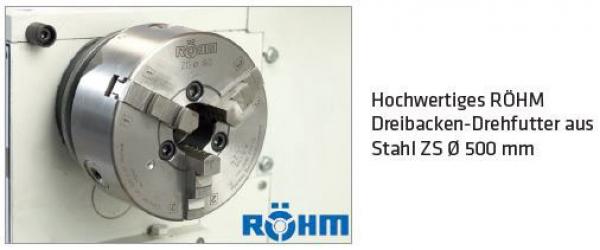

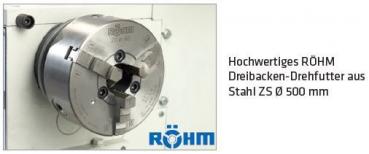

- RÖHM three-jaw lathe chuck Ø 500 mm
- Quick-change tool holder set, 5 pieces
- Halogen machine lamp
- Emergency stop button / zero voltage release
- Lathe chuck protection with safety switch
- Tool slide with splash guard
- Base frame / chip tray / splashback
- Tool kit / Operating instructions / CE
Technical data ELMAG PREMIUM CU 1320 Universal lathe Center distance 1500mm
- centre distance: 1500mm
- centre height: 625mm
- turning diameter over bed: 1320mm
- turning diameter over slide: 940mm
- turning diameter without bridge: 1500mm
- machine bed width: 700mm
- Bridge length: 0mm
- cross slide path: 685mm
- top slide travel: 270mm
- Lathe chuck adapter: DIN 55027 No 15
- spindle mount (turning spindle): 160
- X-axis travel: 0
- spindle bore: 155mm
- Speed: 5 - 1000 rpm
- Speed steps: 24
- lead screw pitch: 0mm
- lead screw diameter: 0mm
- quill holder: MK 6
- quill diameter: 125mm
- quill travel: 260mm
- Motor power: 22000W
- Rapid traverse motor: 0W
- Power supply: 400/50-60V/Hz
- Length (total): 3700mm
- width (total): 1900mm
- height (total): 1980mm
- weight: 6990kg
- turning length: 0mm
Benefit from a 2 year ELMAG warranty
Accessories for ELMAG machines on request
