ED2000IND105D_400V Holzmann metal lathe

Product highlights ED2000IND105D_400V Holzmann metal lathe

The HOLZMANN ED2000IND105 metal lathe with 2000 mm centre distance, 105 mm spindle bore diameter, coolant supply, digital position display and rapid traverse in industrial design for use in your business or school.


• Heavy-duty, vibration-absorbing cast iron construction
• Extremely wide, induction-hardened and ground machine bed

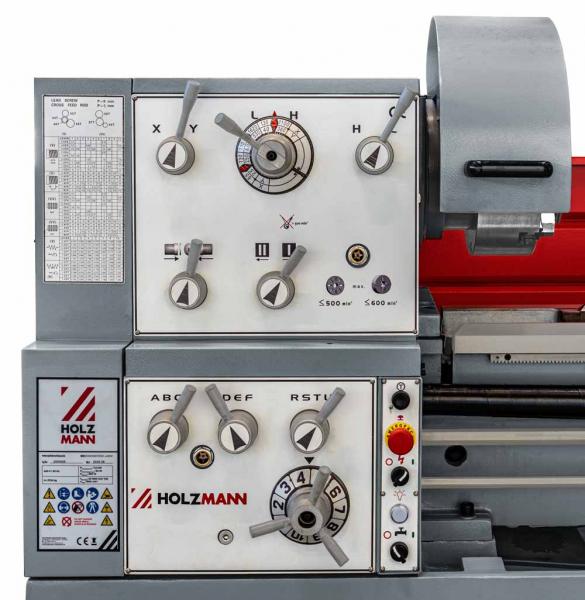

• Handy and easy to operate thanks to clearly arranged control panel
• Removable bridge for machining large workpieces
• Four-way adjustable longitudinal stop
• All guides adjustable via wedge strips
• Camlock spindle holder D8

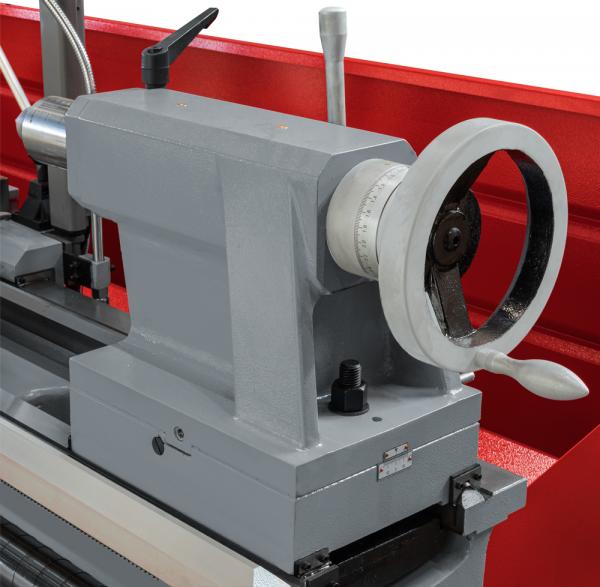

• The tailstock can be adjusted off-centre for taper turning
• Large spindle bore with a diameter of 105 mm
• Complete with foot brake and automatic shut-off for immediate spindle stop
• Very large number of different thread pitches possible
• Includes coolant device and work lamp

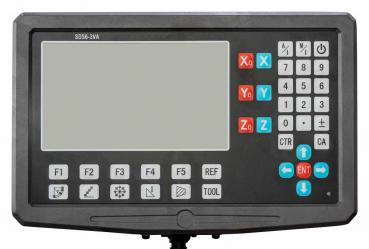

• Digital position display (3 axes) for easier operation
• Rapid traverse: 300W motor

Scope of delivery ED2000IND105D_400V Holzmann metal lathe

• Coolant device,
• work lamp,
• 3-jaw chuck Ø315mm,
• 4-jaw chuck Ø320mm,
• faceplate Ø 450mm,
• reduction sleeve,
• interchangeable gears,
• fixed and travelling steady rest,
• centring points,
• splash guard,
• digital position display (3 axes)

Operating fluids ED2000IND105D_400V Holzmann metal lathe

•  Headstock oil capacity 12 l
•  Gearbox lock case oil capacity 1 l
•  Feed gearbox oil capacity 4.5 l
•  Coolant system max. 33 l

Technical data ED2000IND105D_400V Holzmann metal lathe
