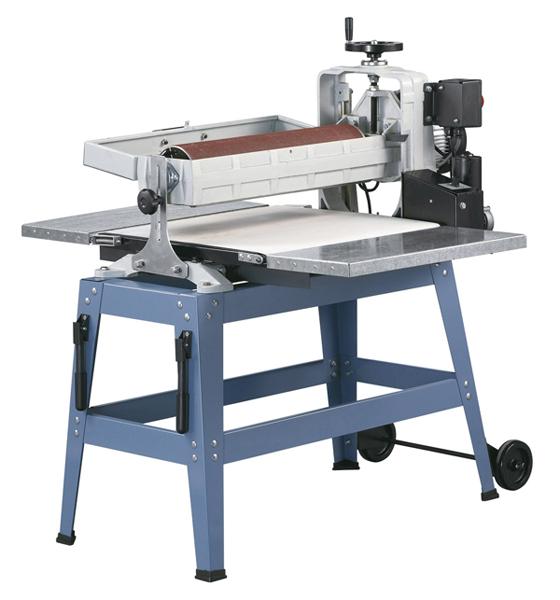

Properties Bernardo ZSM 560 - 400 V Cylinder grinding machine

Set variable conveyor belt speed
Suitable for major commercial grinding abrasive cloths
Scale ensures precise height adjustment of sanding unit
Handwheel and scale allow for accurate adjustment of the sanding unit to thickness of workpiece
Complete with dust port to connect an dust collector for a clean workplace
Powerful motor guarantees best results
When side support not in use machine suitable for double the grinding width (eg. for frames etc.)

Standard accessories Bernardo ZSM 560 - 400 V Cylinder grinding machine:

Max. sanding widht	560 (1120 mm)
Min. sanding length	60 mm
Workpiece thickness, min./max.	5 - 80 mm
Table size (L x W)	500 x 580 mm
Both-sided table extension (L x W)	245 x 580 mm
Working height	695 mm
Sanding roller	Ø 130 x 565 mm
Feed stepless	0,5 - 3 m/min
Speed	1420 rpm
Dust extraction outlet	100 mm
Motor power	1,5 kW (2,0 PS)
Voltage	400 V
Machine dimension (W x D x H)	1100 x 1065 x 1170 mm
Weight approx.	110 kg
