Bernardo Universal lathe with infinitely variable speed Titan 800 x 3000 Vario
The Titan 800 Vario production lathe features top performance and high accuracy. This is an excellent model for medium to difficult turning works and extremely suitable for economic production of single units and serial operations in machine construction, plant engineering, production etc. The serially Delta frequency inverter features many advantages such as the high torque at low speed and the almost constant speed during processing.
Features Bernardo Universal lathe with infinitely variable speed Titan 800 x 3000 Vario
- Machine bed features strong reinforcements to minimize oscillations and to stabilize bed guiding
- Fully equipped with 3-axis digital readout, quick change tool post holder, 3-jaw steel chuck etc.
- Stepless speed adjustment at gear head, ideal adjustment of the cutting speed to the workpiece and the feed speed
- State-of-the-art main spindle bedding with high-quality angular roller bearing
- Complete with rapid traverse longitudinal and cross to reduce downtime
- Large spindle bore (105 mm) for workpieces with a large diameter
- Tailstock with fine scale, removeable for taper turning
- Elektromechanical foot brake clearly reduces downtime
- Mechanic coupling allows for soft start
Standard accessories Bernardo Universal lathe with infinitely variable speed Titan 800 x 3000 Vario
- 3-axis digital readout ES-12 V with LCD-display
- Frequency inverter
- Rapid feed longitudinal and cross
- 3-jaw chuck steel PO3-315 mm / D8
- Face plate 500 mm

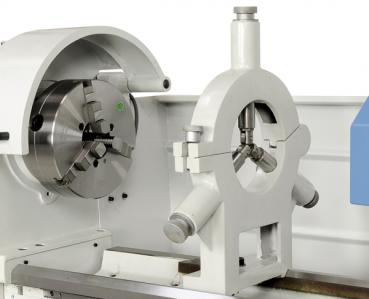

- Steady rest - Passage up to max. 180 mm
- Follow rest - Passage up to max. 100 mm
- 2 dead centers
- Foot pedal with brake function according to CE
- Initial filling with Shell Tellus 46
- 40 pos. tool post and holder set with 4 inserts
- Protective device for tool post holder
- Safety clutch
- Coolant device
- LED machine light
- Change gears
- Morse taper drill sleeve
- Splash guard
- Cable guide by energy chain
- Tools
Technical specifications Bernardo Universal lathe with infinitely variable speed Titan 800 x 3000 Vario
| Distance between centers | 3000 mm |
| Center height | 400 mm |
| Swing over bed | 800 mm |
| Swing over gap | 1000 mm |
| Swing over cross slide | 540 mm |
| Bed with | 400 mm |
| Spindle bore | 105 mm |
| Spindle nose fixture | DIN 55029, D1-8 |
| Speed range | 16 – 70 / 50 – 215 / 100 – 475 / 350 - 1500 rpm |
| Longitudinal feed | (25) 0,044 - 1,48 mm/rev. |
| Cross feed | (25) 0,022 - 0,74 mm/rev. |
| Metric thread | (54) 0,45 - 120 mm |
| Inch thread | (54) 7/16 - 80 threads/1" |
| Diameter of tailstock sleeve | 90 mm |
| Travel of tailstock sleeve | 235 mm |
| Taper of tailstock sleeve | MT 5 |
| Motor power | 7,5 kW (10,0 HP) |
| Machine dimension (L x W x H) | 4800 x 1320 x 3820 mm |
| Weight approx. | 3820 kg |
