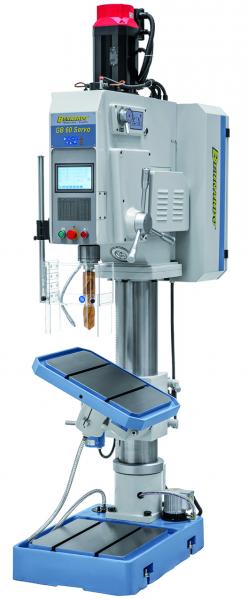

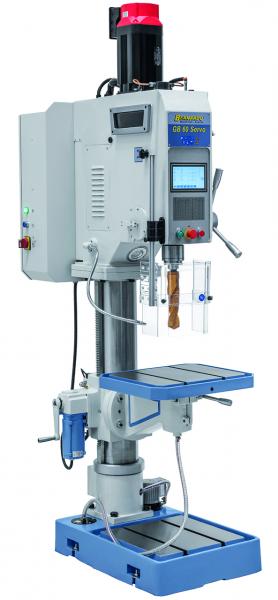

Bernardo gear column drill press GB 60 Servo

Features Servo gear column drilling machine Bernardo GB 60

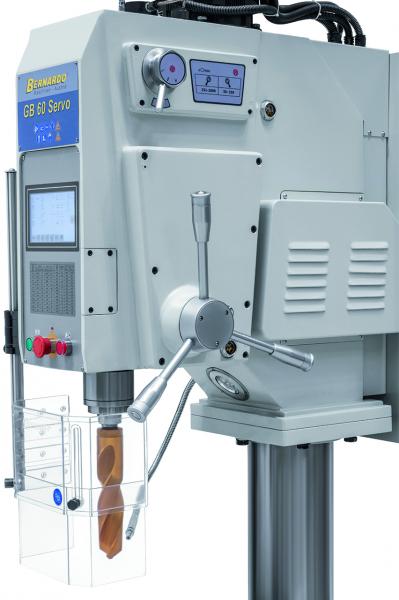

The GB 60 Servo gear column drilling machine is equipped with stepless speed control as standard, allowing the cutting speed to be optimally adjusted to the workpiece. The special features of this model are its operation via a large touchscreen and servo motors for the drive and quill feed.


• After entering the tool diameter and material (cast iron/steel), the standard control system calculates the ideal speed or feed rate for drilling and thread cutting.

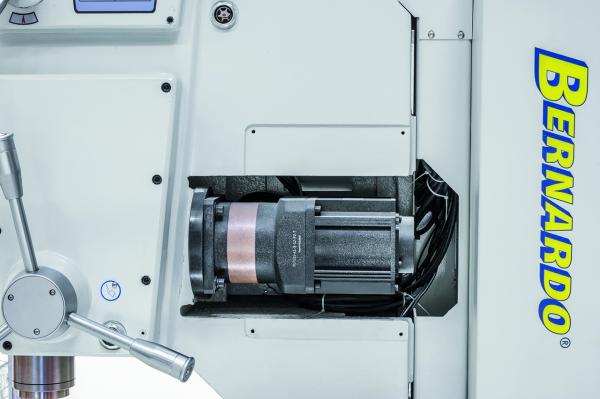

• The spindle drive and quill feed are powered by high-quality servo motors.

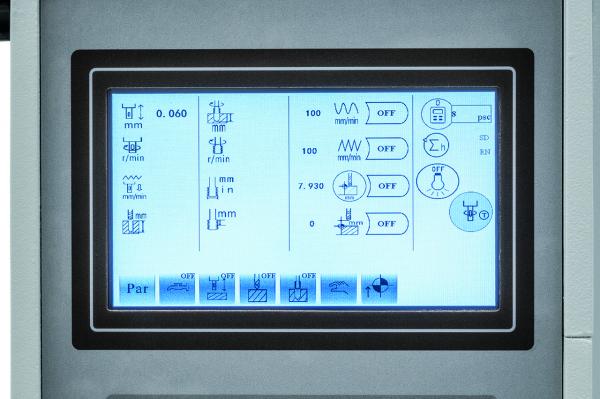

• Large touchscreen for all setting work and functions (e.g. drilling, deep hole drilling, thread cutting, etc.). .....)
• Equipped with motorised table height adjustment as standard
• Solid grey cast iron table with rotatable and swivelling support surface
• Increased cost-effectiveness thanks to extensive basic equipment
• Precisely machined base plate with T-slots and integrated coolant pump

Scope of delivery

• Keyed chuck 3 - 16 mm / B 18
• Drill chuck mandrel MK 5 / B 18
• Reducing sleeve MK 5 / 4, MK 4 / 3, MK 3 / 2
• Motorised table lift
• Coolant device
• Touchscreen
• Automatic tool ejector
• Servo feed motor
• Thread cutting device
• Initial filling with Shell Tellus 46
• LED machine light
• Digital speed display
• Digital drilling depth display
• Height-adjustable protective cover

Technical details Servo gear column drilling machine Bernardo GB 60
