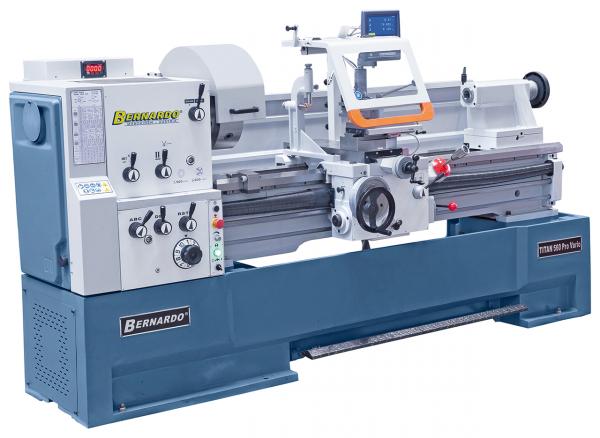

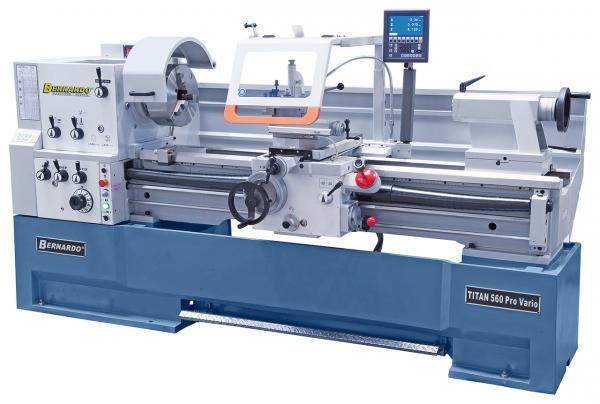

Bernardo Universal lathe Titan 560 x 1500 Pro Vario

Product features Bernardo universal lathe Titan 560 x 1500 Pro Vario

• Delta frequency converter as standard for high torque in the lower speed range and almost constant speed under load
• Infinitely variable speed control, the set speed is read on a digital display
• Versatile application possibilities in general mechanical engineering, production, single-part production, ...
• A removable bridge enables the machining of workpieces with large diameters
• Rapid traverse lengthwise and crosswise as standard to reduce non-productive time
• Modern main spindle bearing with angular contact ball bearing in precision design
• The machine bed, cast in one piece, is extremely torsion-resistant and low in vibration, which is an essential prerequisite for accurate turning
• Tailstock can be adjusted for taper turning
• Central lubrication for the bed slide

Scope of delivery Bernardo universal lathe Titan 560 x 1500 Pro Vario

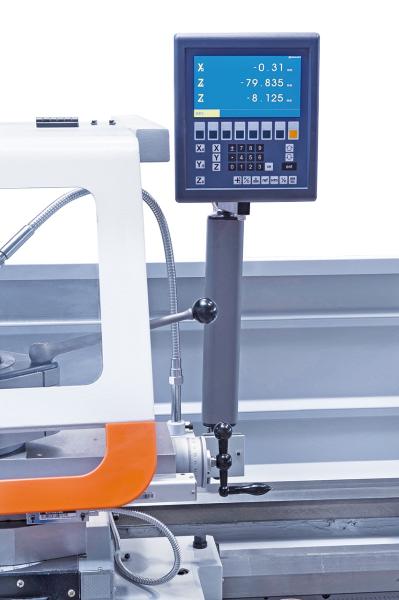

• 3-axis digital display ES-12 V with LCD display
• 3-jaw chuck PS3-315 mm / D8
• Fixed steady rest - passage diam. max. 180 mm
• Travelling steady rest - passage diam. max. 120 mm
• Foot pedal with brake function according to CE

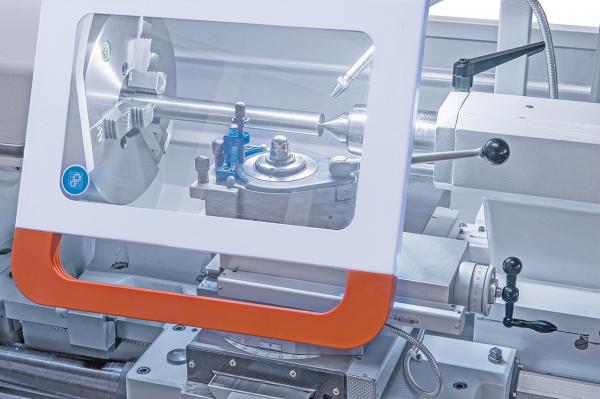

• Safety device for quick-change toolholder
• LED machine light
• Initial filling with Shell Tellus 46
• Clamping disc 450 mm
• 2 centring tips
• Frequency converter
• Digital speed display
• Slipping clutch
• Rapid traverse longitudinal and plane
• Coolant device
• Quick-change tool holder with 4 inserts
• Change wheels
• Reducing sleeve
• Chipping rear wall
• Operating tool

Technical data Bernardo Universal Lathe Titan 560 x 1500 Pro Vario
