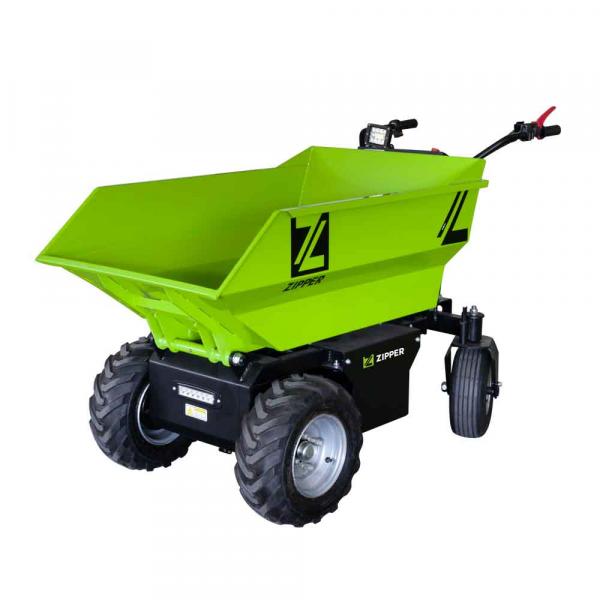

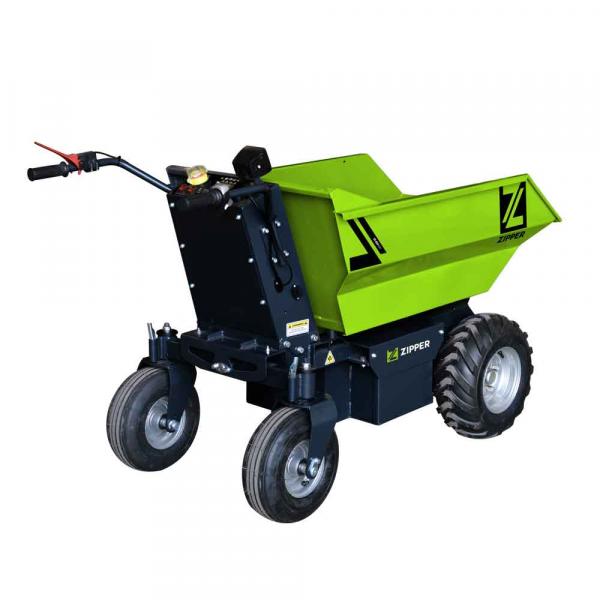

Zipper electric wheel dumper ZI-ED500

Product Highlights Zipper electric wheel dumper ZI-ED500

• 48 V / 32 Ah Pb battery capacity
• 1000 W drive motor
• 800 W tilt motor for hydraulic unit
• 3-forward speeds
  • 1: 0-3.3 km/h
  • 2: 0-4.2 km/h
  • 3: 0-5 km/h
• 1 x reverse speed
  • 0-1.5 km/h
• 2 x LED light

Technical Details Zipper electric wheel dumper ZI-ED500

• motor power s1 in W: 1000
• voltage: 48 V
• battery voltage: 48 V
• battery capacity: 48 V / 32 Ah
• battery duration: max. 8h
• charge time: ~7h

• payload in kg: 500
• container dimensions in mm: 1090 x 665 x 385

• sound power level in dB(A): 65,4
• sound pressure level in dB(A): 85,2

• gross weight in kg: 241.50
• net weight in kg: 208

• packaging width in mm: 770
• packaging length in mm: 1.430
• packaging height in mm: 860

• EAN code: 9120039234908

Included in delivery Zipper electric wheel dumper ZI-ED500

• charger, battery (48V / 32Ah)

Optional accessories Zipper electric wheel dumper ZI-ED500

• bucket extension ED500MA, strake-box ED500HR; flat bed hopper ED500FP, flat bed ED500FM
