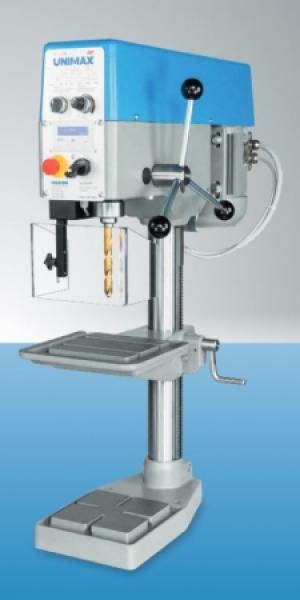

Zimmer UNIMAX 1 TAP bench drill with integrated tapping attachment
Product Highlights Zimmer UNIMAX 1 TAP Bench Drilling Machine with Integrated Tapping Device
Very powerful, universal bench drill with integrated tapping device and programmable digital display.
Precise, smooth-running standard drilling machine, with high accuracy and quality. Switch for clockwise/anticlockwise rotation, drilling table adjustable via toothed rack and swivelling around the column. Table/height adjustment via toothed rack and worm gear. Three-phase motor, mains connection 230 V.
Precise, smooth-running standard drilling machine, with high accuracy and quality. Switch for clockwise/anticlockwise rotation, drilling table adjustable via toothed rack and swivelling around the column. Table/height adjustment via toothed rack and worm gear. Three-phase motor, mains connection 230 V.
- Optimal for locations without three-phase connection
- Wide speed range
- Programmable
- thread depth Powerful
Technical Data Zimmer UNIMAX 1 TAP Bench Drilling Machine with Integrated Tapping Device
Continuous drilling capacity in St 60 | 15 mm |
Drilling power normal | 18 mm |
Thread cutting capacity | M 8 |
Spindle | MK 2 |
Drilling depth | 80 mm |
Outreach | 180 mm |
Distance spindle/table | up to 380 mm |
Table surface | 250 x 220 mm |
Column diameter | 65 mm |
Total height | 910 mm |
Weight | 80 kg |
Engine power | 1,1 kW |
We would be happy to advise you on the machine and the extensive range of accessories by telephone.
In addition, we can possibly arrange a desired on-site appointment by arrangement!
