Zarges work platform ZAP Telemaster S

Stufenanzahl einschl. Plattform:

from 2.078,90 EUR

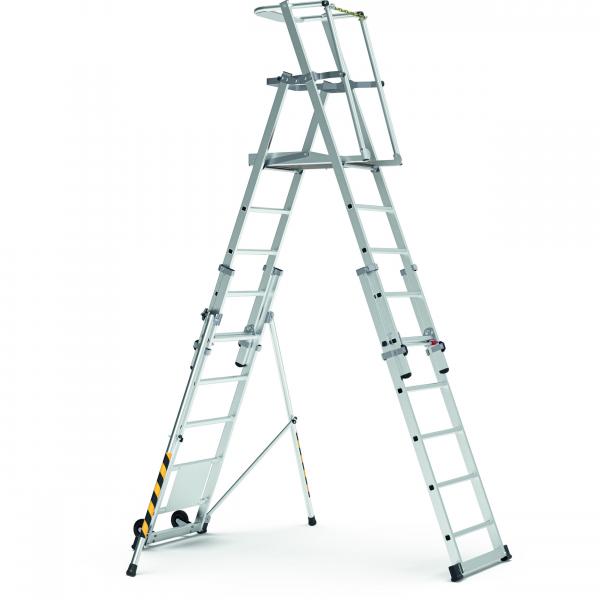

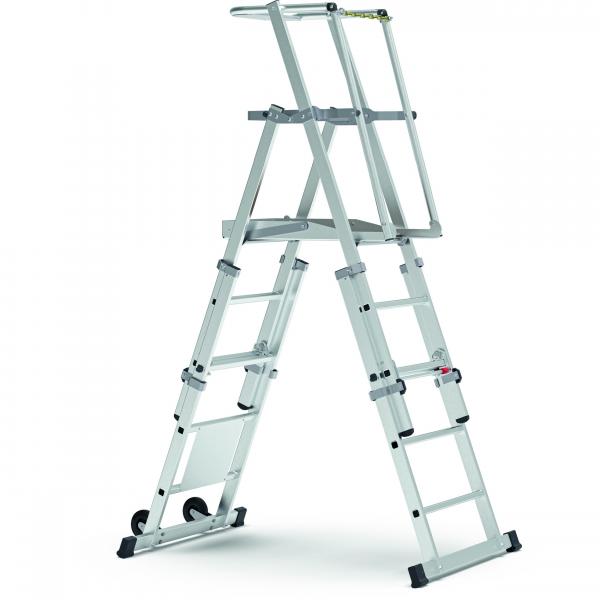

Product details Zarges work platform ZAP Telemaster S

Safe and flexible: height-adjustable platform with all-round railing for safe standing, easy to move and compact to fold up.

Height-adjustable platform with large standing surface with all-round guardrail for safe and comfortable standing.
Simple height adjustment according to the sliding ladder principle, so that different heights can be reached with just one platform ladder.

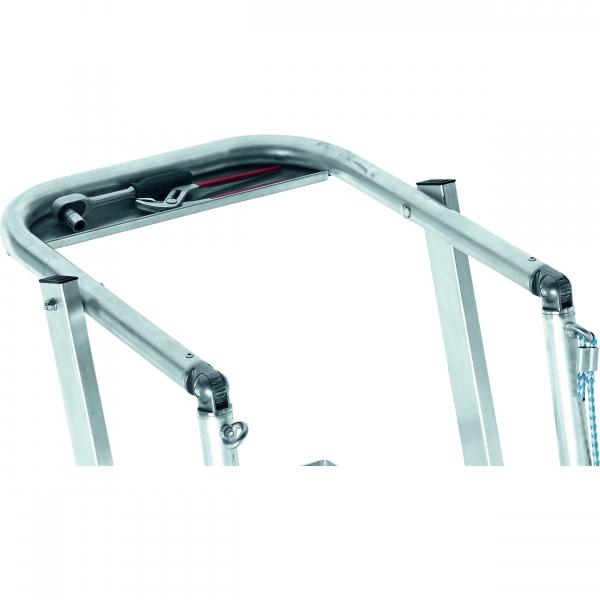

Easy handling - handrails and guardrails are automatically folded out during assembly.
Can be used on stairs and can be folded up particularly compactly for transport and storage.
Easy to move thanks to two castors at the rear.

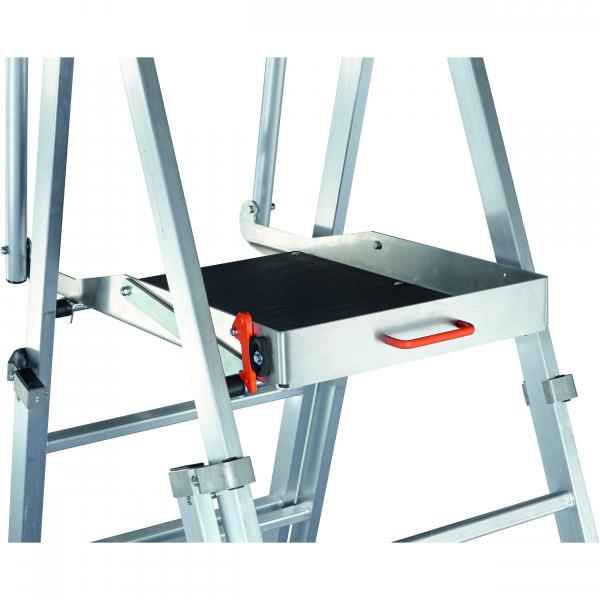

Large standing surface 665 x 440 mm made of 7-ply glued plywood, with guardrail and knee rail for maximum work safety and comfortable standing.
Complies with the new European standard DIN EN 131-7.
Easy to move thanks to two castors, even when assembled.

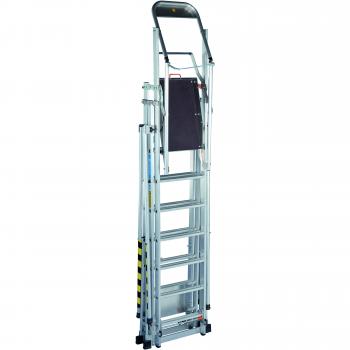

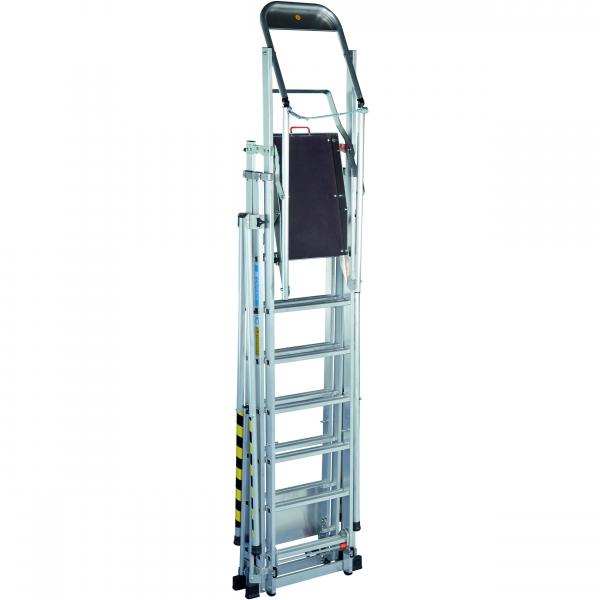

Compact dimensions when folded, making it easy to transport and store.

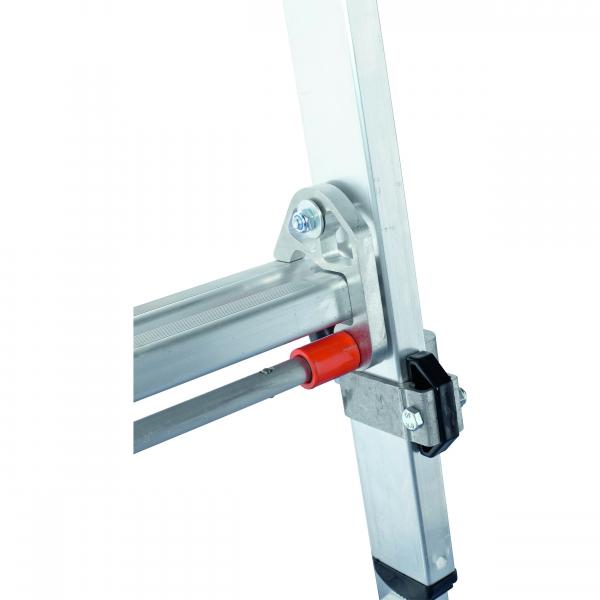

Rung-stile connection with high-strength ZARGES quality flanging.
Replaceable plastic shoes for non-slip standing.
Can be used on stairs.
Order no. 41325 without stabilisers.
Required number of ballast weights for order no. 41328 for outdoor use: 4x (order no. 41331).

Order no.	Working height	Width	Width, extended	Width, retracted	Weight	Base area, boom extended LxW	Base area, boom retracted LxW	Height incl. railing	Length, extended	Length, retracted	Dimensions, folded	Platform height	Number of rungs incl. platform	Transport dimensions
41325	3,34 m	2,16 m	1 m	1 m	28 kg	1,45m × 1 m	1,45m × 1 m	max. 2,37 m	1,45 m	1,45 m	0,4 m × 2,16 m × 1,02 m	0,81m / 1,08m / 1,34m	5	2.160 mm × 1.020 mm × 400 mm
41326	3,83 m	2,44 m	2,25 m	0,81 m	34 kg	1,8m × 2,25 m	1,8m × 0,81 m	max. 2,86 m	1,8 m	1,8 m	0,4 m × 2,44 m × 0,81 m	1,05m / 1,3m / 1,6m / 1,83m	7	2.440 mm × 820 mm × 400 mm
41327	4,35 m	2,72 m	2,55 m	0,81 m	38,5 kg	2,2m × 2,55 m	2,2m × 0,81 m	max. 3,38 m	2,2 m	2,2 m	0,4 m × 2,72 m × 0,81 m	1,31m / 1,6m / 1,8m / 2,1m / 2,35m	9	2.720 mm × 820 mm × 400 mm
41328	5,15 m	3,28 m	2,5 m	0,81 m	50 kg	2,8m × 2,5 m	2,8m × 0,81 m	max. 4,17 m	2,8 m	2,8 m	0,4 m × 3,28 m × 0,81 m	1,83m / 2,12m / 2,38m / 2,65m / 2,9m / 3,15m	12	3.280 mm × 820 mm × 400 mm
