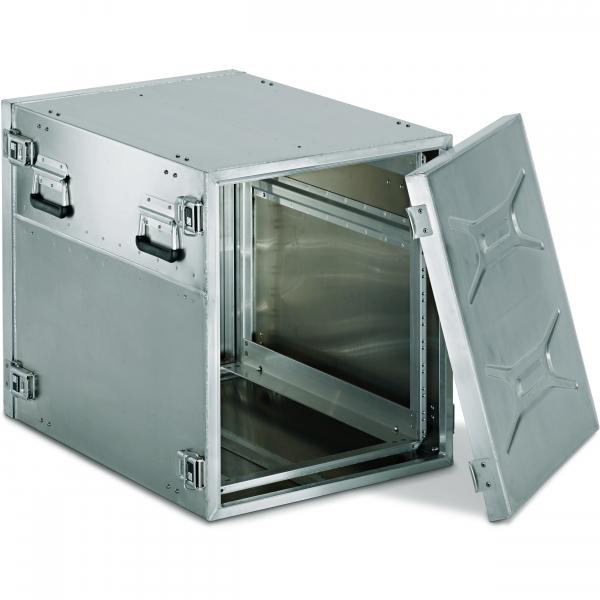

Zarges Mitraset Racklite Basic 19" enclosure

Product No.:
Shipping time:: 2-4 days (abroad may vary)
Stock:: pieces
Weight:: - kg per piece

Outer dimension L x W x H:

Price on request

Ask about product

Description

Description

Product details Zarges Mitraset Racklite Basic 19" enclosure

Trage enclosure for accommodating electronic devices in 19" grid.

For accommodating electronic equipment in 19" grid in accordance with VG 95446.
Variable versions in different nominal depths and height units.
Extensive special equipment for numerous applications.
Protection class IP 65 to DIN EN 60529 and IEC 34-5/529 due to welded enclosure and cover with all-round seal.
The swing frame is connected to the enclosure with 8 rubber dampers and 2 earth straps.
Stackable due to stacking knobs and recesses.
Same nominal depths are stackable.
ZARGES Comfort handles for ergonomic handling and loads up to 50 kg.
ZARGES Comfort lock for ergonomic handling and extremely long service life.
Fitted with folding latches with anti-spring open feature.
HF-tight version available as an optional extra.

All variants Zarges Mitraset Racklite Basic 19" enclosure

Order no.	Outer dimension L x W x H	Installation height	Weight	Nominal depth
45943	456 mm × 568 mm × 226 mm	3 HE/U	7,7 kg	350 mm
45944	456 mm × 568 mm × 270,5 mm	4 HE/U	8,3 kg	350 mm
45945	456 mm × 568 mm × 315 mm	5 HE/U	8,7 kg	350 mm
45946	456 mm × 568 mm × 359,5 mm	6 HE/U	9 kg	350 mm
45947	456 mm × 568 mm × 404 mm	7 HE/U	9,3 kg	350 mm
45948	456 mm × 568 mm × 448,5 mm	8 HE/U	9,6 kg	350 mm
45949	456 mm × 568 mm × 493 mm	9 HE/U	10 kg	350 mm
45950	456 mm × 568 mm × 537,5 mm	10 HE/U	10,3 kg	350 mm
45951	456 mm × 568 mm × 582 mm	11 HE/U	10,6 kg	350 mm
45952	456 mm × 568 mm × 626,5 mm	12 HE/U	11 kg	350 mm
45953	586 mm × 568 mm × 226 mm	3 HE/U	9,1 kg	480 mm
45954	586 mm × 568 mm × 270,5 mm	4 HE/U	9,8 kg	480 mm
45955	586 mm × 568 mm × 315 mm	5 HE/U	10,2 kg	480 mm
45956	586 mm × 568 mm × 359,5 mm	6 HE/U	10,5 kg	480 mm
45957	586 mm × 568 mm × 404 mm	7 HE/U	10,5 kg	480 mm
45958	586 mm × 568 mm × 448,5 mm	8 HE/U	11,3 kg	480 mm
45959	586 mm × 568 mm × 493 mm	9 HE/U	11,7 kg	480 mm
45960	586 mm × 568 mm × 537,5 mm	10 HE/U	12 kg	480 mm
45961	586 mm × 568 mm × 582 mm	11 HE/U	12,4 kg	480 mm
45962	586 mm × 568 mm × 626,5 mm	12 HE/U	12,8 kg	480 mm
45963	716 mm × 568 mm × 226 mm	3 HE/U	10,4 kg	610 mm
45964	716 mm × 568 mm × 270,5 mm	4 HE/U	11,1 kg	610 mm
45965	716 mm × 568 mm × 315 mm	5 HE/U	11,5 kg	610 mm
45966	716 mm × 568 mm × 359,5 mm	6 HE/U	11,9 kg	610 mm
45967	716 mm × 568 mm × 404 mm	7 HE/U	12,3 kg	610 mm
45968	716 mm × 568 mm × 448,5 mm	8 HE/U	12,8 kg	610 mm
45969	716 mm × 568 mm × 493 mm	9 HE/U	13,2 kg	610 mm
45970	716 mm × 568 mm × 537,5 mm	10 HE/U	13,6 kg	610 mm
45971	716 mm × 568 mm × 582 mm	11 HE/U	14 kg	610 mm
45972	716 mm × 568 mm × 626,5 mm	12 HE/U	14,4 kg	610 mm
45973	× ×
45974	× ×
45975	× ×
45976	× ×
45977	× ×
45978	× ×
45979	× ×
45980	× ×
45981	× ×
45982	× ×
