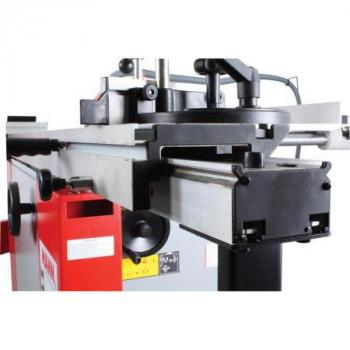

TS315VF3200230V Holzmann sliding table saw incl. sizing table

Product Highlights TS315VF3200230V Holzmann sliding table saw incl. sizing table​

• Robust and smooth-running rip fence with quick fixing, guided on stop bar
• tiltable and height adjustable circular saw blade with scoring unit
• Cast iron table with table extension at the back and right with support leg
• extendable stop with flip stop
• Support roller on the delivery simplifies placement of the workpiece
• reinforced body in the area of the sliding table increases stability
• oversized cutting width right from saw blade up to 1260mm
• equipped with high-quality two-part scoring saw blade

Scope of delivery TS315VF3200230V Holzmann sliding table saw incl. sizing table​

• Scorer,
• 1xHM circular saw blade Ø315mm,
• 1x HM scoring saw blade Ø100mm,
• Parallel stop,
• Telescopic fence,
• Angle stop,
• Trimming shoe,
• Eccentric downholder

Technical data TS315VF3200230V Holzmann sliding table saw incl. sizing table​

• Motor power S1 in W: 3800
• Motor power S6 in W: 5100
• voltage: 230V

• Outrigger table in mm: 760x540
• Format sliding table in mm: 3200x270
• Suction connection in mm: 100
• Table height in mm: 850
• Table extension in mm: 500x310 /800x440
• Table size in mm: 800x820
• Gross weight in kg: 384

• Cutting width at rip fence in mm: 1260
• max. cutting height 45° in mm: 75
• max. trimming length in mm: 3200
• max. cutting height 90° in mm: 100

• Saw blade speed in min-1: 4500
• Scoring saw blade in mm: 100
• Saw blade (/hole) in mm: 315
• scoring saw blade speed in min-1: 8500
• Saw blade swivel range: 0°-45°
