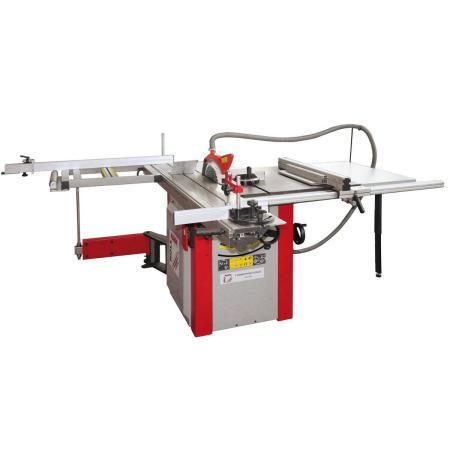

TS315VF2000400V Holzmann sliding table saw incl. sizing table

Product Highlights TS315VF2000400V Holzmann sliding table saw incl. sizing table​

• tiltable and height adjustable circular saw blade with scoring unit
• Cast iron table with table extension at the back and right with support leg
• 2000mm long professional aluminium sliding table with support roller at the delivery

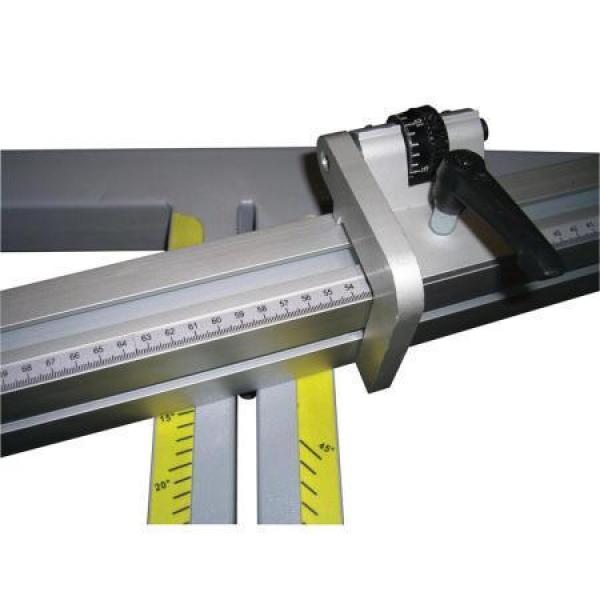

• extendable mitre fence with flip stop
• oversized parallel cut width on the right side of the saw blade up to 1260mm

Scope of delivery TS315VF2000400V Holzmann sliding table saw incl. sizing table​

• Carbide circular saw blade Ø315mm,
• Scoring unit,
• Carbide scoring saw blade,
• Outriggers,
• Table extensions,
• Parallel stop,
• Mitre fence,
• Telescopic fence

Technical data TS315VF2000400V Holzmann sliding table saw incl. sizing table​

• Motor power S1 in W: 3000
• Motor power S6 in W: 4000
• voltage: 400V

• Outrigger table in mm: 540x760
• Format sliding table in mm: 2000x270
• Suction connection in mm: 100
• Table height in mm: 870
• Table extension in mm: 500x310 / 800x440
• Table size in mm: 800x820
• Gross weight in kg: 284

• Cutting width at rip fence in mm: 1220
• max. cutting height 45° in mm: 80
• max. trimming length in mm: 1900
• max. cutting height 90° in mm: 100

• Scoring saw blade in mm: 90
• Saw blade (/hole) in mm: 315
• Saw blade speed in min-1: 4000
• scoring saw blade speed in min-1: 5800
• Saw blade swivel range: 0°-45°
