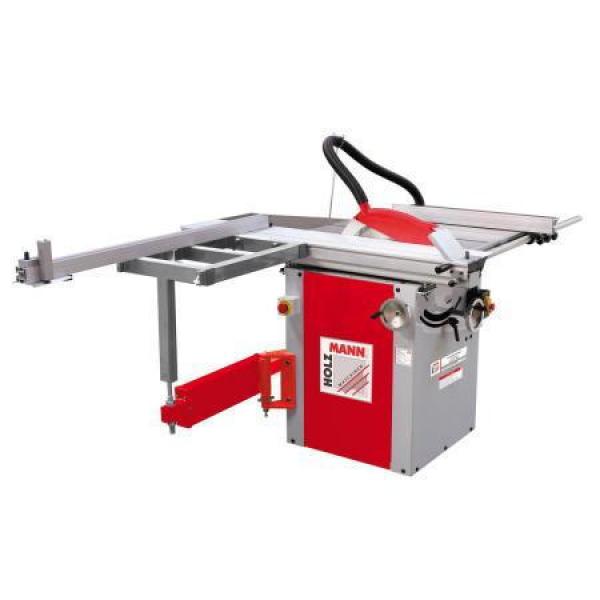

TS315F1500400V Holzmann sliding table saw incl. sizing table

Product Highlights TS315F1500400V Holzmann sliding table saw incl. sizing table​

• tiltable and height adjustable circular saw blade
• stable and large metal hand rims
• 1500 mm long professional aluminium sliding table with support roller at the delivery
• Saw blade with Ø315mm allows a cutting height of up to 100mm
• stable and precisely guided longitudinal stop
• strong grey cast iron table for long life
• Mitre fence with flip stop
• Cutting width at the rip fence to the right of the saw blade 940mm

Scope of delivery TS315F1500400V Holzmann sliding table saw incl. sizing table​

• Carbide circular saw blade Ø315mm,
• Outriggers,
• Table extension,
• Parallel fence,
• telescopic mitre fence,
• Trimming shoe

Technical data TS315F1500400V Holzmann sliding table saw incl. sizing table​

• Motor power S1 in W: 3000
• Motor power S6 in W: 4200
• voltage: 400V

• Format sliding table in mm: 1500x238
• Suction connection in mm: 100
• Table height in mm: 870
• Table extension in mm: 760x600 / 500x350
• Table size in mm: 760x350
• Installation dimensions in mm: 1540x2400x1300
• Gross weight in kg: 203

• Cutting width at rip fence in mm: 940
• max. cutting height 45° in mm: 75
• max. trimming length in mm: 1370
• max. cutting height 90° in mm: 100

• Saw blade (/hole) in mm: 315x30x3,2
• Saw blade speed in min-1: 4250
