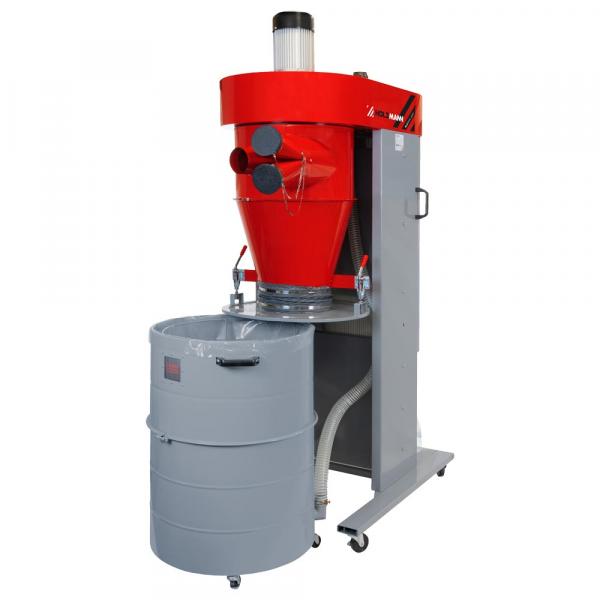

RLE3000_400V Holzmann Clean Air Dust Collector
Product highlights RLE3000_400V Holzmann Clean Air Dust Collector
The HOLZMANN RLE3000_400V clean air dust extractor with remote control, vacuum gauge, cyclone separator and filter cartridge. The ideal extraction system for your woodworking machines.
- Separation in cyclone separator with filter cartridge
- Inlet adapter for connecting up to 3 woodworking machines
- Remote control for starting/stopping the extraction system
- Includes chassis (wheels)
- Machine running time display
- Automatic filter cartridge cleaning after the extraction system has been switched off to ensure consistent extraction performance (includes collection filter bag).
- Collection container with chassis and viewing window for checking the fill level of the extracted wood chips/dust
Technical data RLE3000_400V Holzmann Clean Air Dust Collector
| Motor Data |
|
| Motor power S1 in W | 3000 |
| Voltage | 400 V / 50 Hz |
| General Dimensions |
|
| Extraction connection in mm | 1 x Ø200 | 3 x Ø100 |
| Max. height in mm | 1320 x 900 x 2190 |
| Extraction System |
|
| Extraction capacity in m³/h | 3200 |
| Chip bag volume in L | 227 | 80 |
| Fan diameter in mm | Ø 400 |
| Vacuum in Pa | 2470 |
| Noise & Vibration |
|
| Sound power level in dB(A) | 87 |
| Sound pressure level in dB(A) | 74 |
| Weight |
|
| Gross weight in kg | 197 |
| Net weight in kg | 153 |
| Shipping Dimensions |
|
| Packaging width in mm | 760 |
| Packaging length in mm | 1,240 |
| Packaging height in mm | 1,160 |
| General Data |
|
| EAN code | 9120132141134 |
