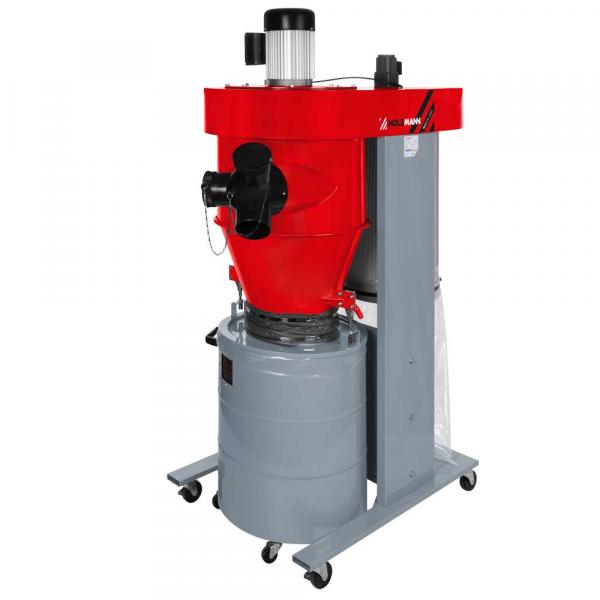

RLE1500_230V Holzmann Clean Air Dust Collector
Product highlights RLE1500_230V Holzmann Clean Air Dust Collector
The HOLZMANN RLE1500_230V clean air dust extractor with remote control, cyclone separator and filter cartridge. The ideal extraction system for your woodworking machines.
- Separation in cyclone separator with filter cartridge
- Inlet adapter for connecting up to 3 woodworking machines
- Remote control for starting/stopping the extraction system
- Includes chassis (wheels)
- Machine running time display
- Automatic filter cartridge cleaning after the extraction system has been switched off to ensure consistent extraction performance (includes collection filter bag).

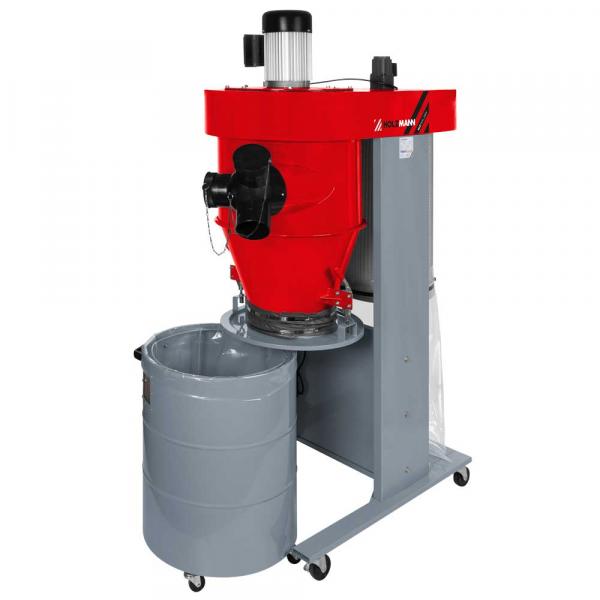

- Collection container with chassis and viewing window for checking the fill level of the extracted wood chips/dust
Technical data RLE1500_230V Holzmann Clean Air Dust Collector
| Motor Data |
|
| Motor output S1 in W | 1500 |
| Voltage | 230 V / 50 Hz |
| General Dimensions |
|
| Dust extraction port in mm | 1x Ø150 | 3 x Ø100 |
| Footprint in mm | 1280 x 790 x 1740 |
| Dust Extraction Systems |
|
| Airflow capacity in m³/h | 1900 |
| Chip bag volume in L | 110 | 80 |
| Fan wheel diameter in mm | 365 |
| Negative pressure in Pa | 2040 |
| Noise and Vibrations |
|
| Sound power level in dB(A) | 84 |
| Sound pressure level in dB(A) | 71 |
| Weight |
|
| Gross weight in kg | 135 |
| Net weight in kg | 97 |
| Shipping Dimensions |
|
| Packaging width in mm | 1.135 |
| Packaging length in mm | 1.170 |
| Packaging height in mm | 720 |
| General Data |
|
| EAN code | 9120132141110 |
