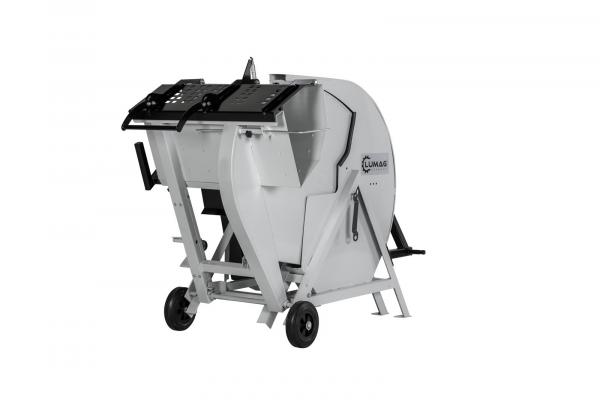

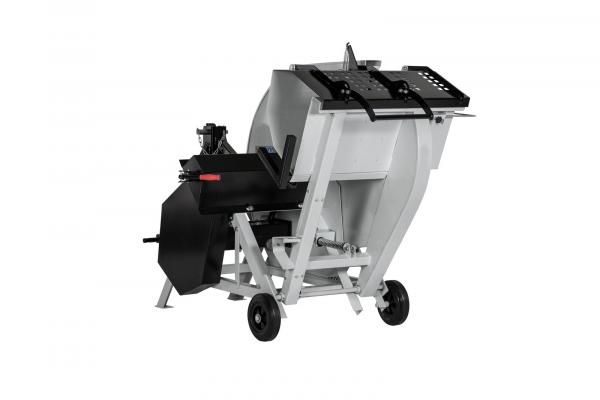

Technical facts Lumag WS-700ZN tilting circular saw with PTO drive:
The PTO-driven version of the WS-700ZN is the ideal solution for firewood preparation in the forest. The machine is driven by the PTO shaft of a tractor. The power is transmitted via the PTO shaft and 2 V-belts and guarantees effective work with optimum safety. The wood can be sawn to the desired length on the spot.
- Complies with the latest safety standards
- robust and compact all-steel construction
- driven via the tractor's PTO connection (PTO not included)
- 3-point suspension included
- including undercarriage & 700 mm carbide saw blade
- Ready for immediate use in just a few steps
- Tool for saw blade change
Technical data Lumag tilting circular saw with PTO drive WS-700ZN:
- Drive via power take-off shaft
- Saw blade speed max. 1540 1/min
- PTO shaft speed max. 540 1/min
- Tractor power from 15 hp

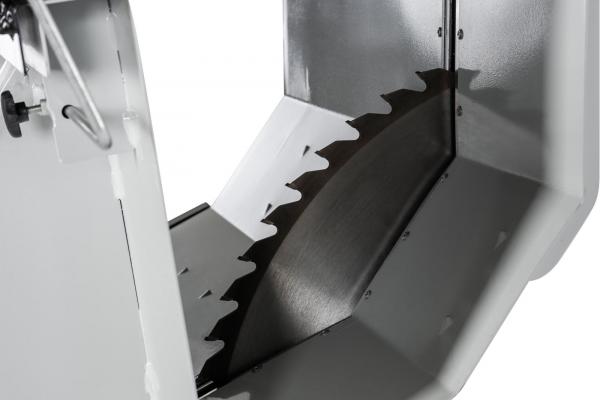

- Carbide saw blade-Ø 700 mm
- Bore-Ø 30 mm
- Number of teeth 60 mm
- Cutting capacity-Ø (min.-max.) 80 - 240 mm
- Load max. 100 kg
- Dimensions (L x W x H) 1380 x 960 x 1140 mm
- Packaging (L x W x H) 1100 x 1000 x 1250 mm
- Weight (net / gross) 164 / 189 kg
