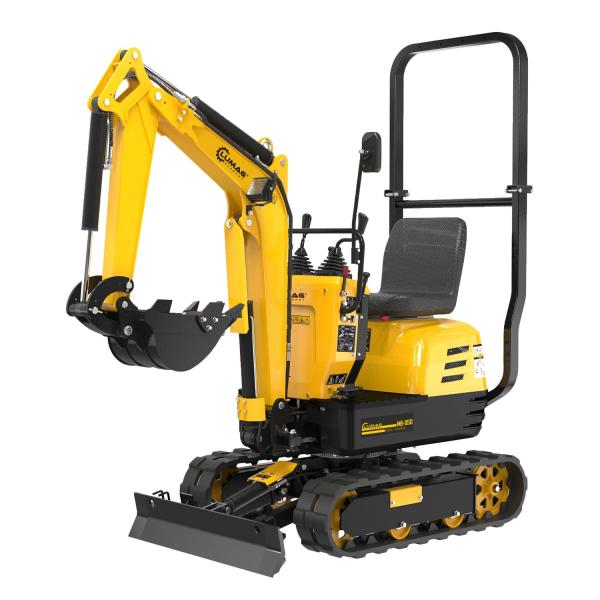

Lumag MB-850 mini excavator with petrol engine
NEW
Product features Lumag MB-850 mini excavator with petrol engine
MB-850 – the versatile, compact and user-friendly mini excavator!
The MB-850 is the perfect helper for working in confined spaces, such as buildings, or for smaller jobs in private gardens where there is no room for larger machines.
Our multi-talented machine is also ideal for drainage work around the house, as the boom can be swivelled 70° to the left and right.
For your safety, the floor of the operating area is covered with a non-slip, impact-resistant rubber coating. The comfortable seat is equipped with a safety belt and a sturdy roll bar is installed.
Its narrow design and compact dimensions allow the MB-850 to be safely manoeuvred through narrow gates and paths to the place of use.
It also has an LED spotlight, two mirrors, an operating hours counter and a horn!
Includes a 31 cm wide shovel.
Optional accessories Lumag MB-850 mini excavator with petrol engine
1. Scraper blade 1, 40 cm wide, for MB-850 petrol mini excavator Item no. 5MB850AS1 EAN: 40 47424 09132 6
2. Scraper blade 2, 50 cm wide, for MB-850 petrol mini excavator Item no. 5MB850AS2 EAN: 40 47424 09131 9
3. Scraper blade 3, 70 cm wide for petrol mini excavator MB-850 Item no. 5MB850AS3 EAN: 40 47424 09133 3
4. Grapple for petrol mini excavator MB-850 Item no. 5MB850G EAN: 40 47424 09130 2
5. Bucket thumb for MB-850 petrol mini excavator Item no. 5MB850SD EAN: 40 47424 09129 6
6. Pallet forks for MB-850 petrol mini excavator Item no. 5MB850PG EAN: 40 47424 09134 0
7. Rake attachment for MB-850 petrol mini excavator Item no. 5MB850RR EAN: 40 47424 09135 7
8. Quick coupler for MB-850 petrol mini excavator Item no. 5MB850SW EAN: 40 47424 09136 4
9. Demolition hammer for MB-850 petrol mini excavator Item no. 5MB850AH EAN: 40 47424 09137 1

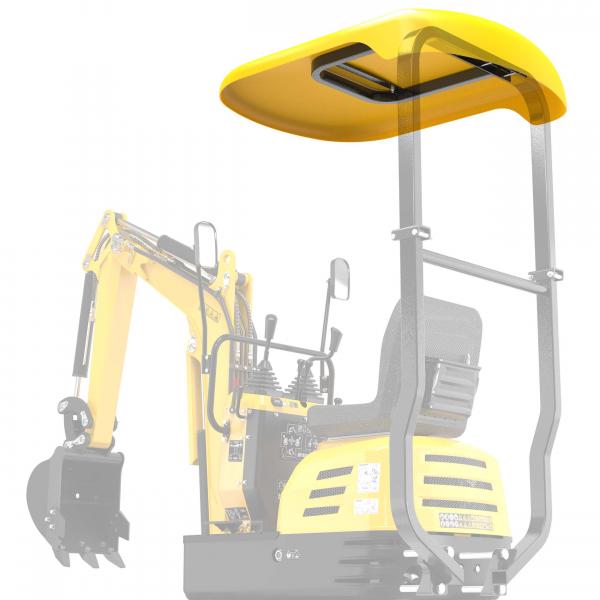

10. Roof for MB-850 petrol mini excavator Item no. 5MB850D EAN: 40 47424 09138 8
Technical data Lumag MB-850 mini excavator with petrol engine
| Engine Power | 6.3 kW at 3,600 rpm |
| Displacement | 306 cm³ |
| Hydraulic Pump Capacity | 2 x 11.5 l/min |
| Hydraulic Pump Pressure | 17.5 MPa (175 bar) |
| Starting System | Electric start with ignition key |
| Parking Brake System | Hydraulic |
| Drive System | Track drive (180 mm wide rubber tracks) |
| Force Values | Arm: 4.75 kN Bucket: 11.40 kN Push Force: 7.25 kN |
| Tank Capacities | Engine oil (10W30): 1.1 l Fuel (ROZ/RON95): 6.0 l Hydraulic oil (HLP-22): 12 l |
| Bucket | Volume: 0.018 m³ Width: 310 mm |
| Boom | Slewing range: 70° each (left & right) |
| Rotation Speed | 9.5 rpm |
| Travel Speed | Max. 3.0 km/h |
| Climbing Angle | 20° |
| Track Width | 880 mm |
| Ground Pressure | 25.5 kPa (0.26 kgf/cm²) |
| Weight (net / gross) | 807 / 910 kg |
| Packaging (L/W/H) | 266 / 75 / 127 cm |
