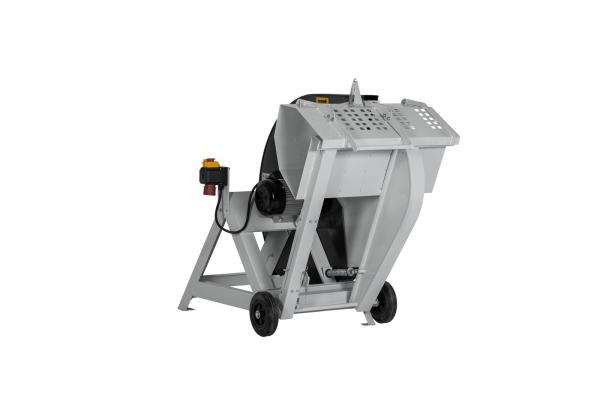

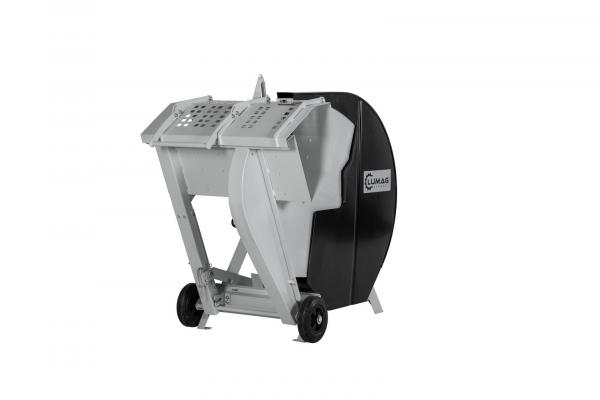

Lumag firewood tilting circular saw WS-700N

Technical facts Lumag firewood tilting circular saw WS-700N:

• Complies with the latest safety standards
• Robust and compact all-steel construction
• Stable and powerful for sawing branches and logs
• Barbs on the feed rocker prevent the sawdust from rotating
• Rocker return via spring
• Carbide saw blade Ø 700 mm
• Chassis included
• Immediately ready for use in just a few steps
• Tool for saw blade change

Technical data Lumag firewood tilting circular saw WS-700N:

• Operating voltage 400 V3~+PE / 50 Hz
• Motor power (P1) 4,0 kW / S6 40%
• Motor speed 1420 1/min
• Protection class I
• Protection class IP 54
• Carbide saw blade Ø 700 mm
• Bore 30 mm
• Number of teeth 60
• Cutting capacity Ø (min./max.) 80 - 240 mm
• Sound power level LWA 115 dB (A)
• Dimensions (L x W x H) 1340 x 807 x 1040 mm
• Packaging (L x W x H) 1156 x 1070 x 1250 mm
• Weight (net / gross) 103 / 116 kg
