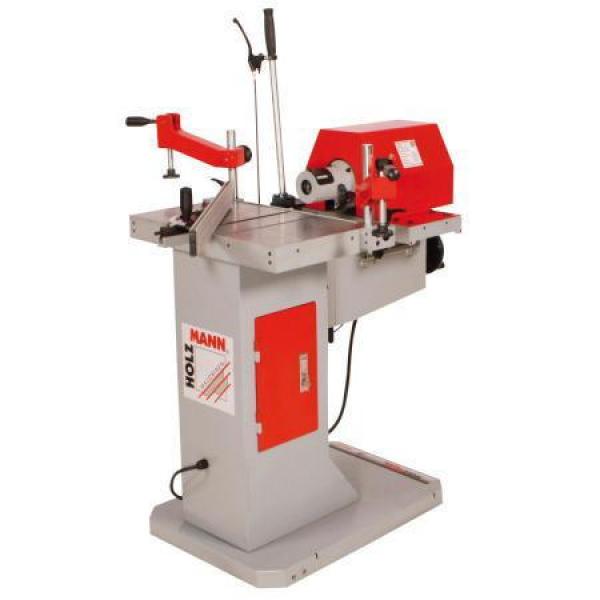

LBM290K230V Holzmann long hole drilling machine incl. grid ruler

Product Highlights LBM290K230V Holzmann slotted hole drilling machine incl. grid ruler​

• for precision bores
• optional 3 extension tables with support feet for
• comfortable working even with large workpieces (LBM 290KAL)
• Dowel drilling device with 4 different
• Raster planes (16-20-22-25mm)
• 2 end stops for series production Standard
• Left and right rotation
• simple and comfortable one-hand operation
• Table extension in front optional: 600x300mm, lateral 595x260mm
• Machine installation dimensions: 800x900x1500mm
• Installation dimensions with extension: 2600x1530x1500mm
• with caulking drill attachments

Scope of delivery LBM290K230V Holzmann long hole drilling machine incl. grid ruler​

• 1 mortise drill 10mm,
• 4 caulking drill attachments (19mm, 20mm, 28mm, 30mm),
• 1 open-end spanner,
• 3x6 square spanner,
• Dowel drilling device,
• Mitre fence,
• eccentric clamps

Technical data LBM290K230V Holzmann long hole drilling machine incl. grid ruler​

• Motor power S1 in W: 3000
• Motor power S6 in W: 4200
• Speed in min-1: 2800
• voltage: 230V

• Table extension in mm: 600x300
• Table size in mm: 570x300
• Suction connection in mm: 100
• Installation dimensions in mm: 855x600x1160
• Gross weight in kg: 160

• max. drilling width in mm: 290
• max. drilling depth in mm: 155
