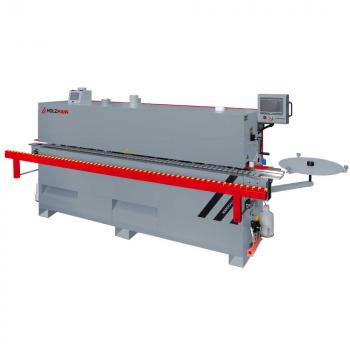

KAM35ALL_400V Holzmann edge banding machine

Product highlights KAM35ALL_400V Holzmann edge banding machine

HOLZMANN KAM35ALL_400V edge banding machine – Efficient edge processing in a compact machine size

The KAM35ALL_400V from the HOLZMANN KAM35 series is the high-end model in this series and the ideal solution for precise and economical gluing of glue edges – perfectly suited for small to medium-sized businesses. Equipped with a jointing unit for perfect edge preparation, a glue application system for clean and even gluing, edge pressing and cutting for precise ends, a milling and scraping unit for precise finishing and an edge trimming unit to ensure that corners and butt joints are perfectly rounded. Thanks to its compact design, the machine takes up very little space in the workshop, yet delivers professional, industrial-grade results. The wide range of models in the KAM35 series allows you to choose exactly the right machine for your business needs.


• Touchscreen display
• Single-sided automatic edge banding machine with
• Joining unit (double cutter, left/right rotation) equipped with ø80 mm cutter 1.1 kW motor per unit and 12,000 rpm cutter speed
• Gluing basin with heating control and direct glue delivery to straight workpieces
• Crosscut saw unit for cutting the edge to length (one unit for front and rear edge) 0.75 | 0.37 kW motor and 12,000 rpm (saw blade speed)
• Double milling unit for milling off the edge protrusion on the workpiece (top/bottom) 0.37 kW motor per unit and 12,000 rpm
• Edge trimming (double milling unit) one for the lower and one for the upper edge corner of the workpiece (0.3 kW motor per unit)
• Scraper blade R2 (top/bottom) (can be activated or deactivated using a switch)
• Spray unit for applying a cleaning agent in front of the polishing disc
• Straight surface scraper blade unit (top/bottom)
• Polishing unit (2x 0.18 kW motor, Ø150 x Ø50x20 mm polishing disc)
• Automatic and constant panel feed thanks to chain conveyor drive and powerful motor
• Adhesive temperature electronically adjustable on the touch display
• Edge banding support table

Sope of delivery KAM35ALL_400V Holzmann edge banding machine

• 2x jointing cutters (ø80xø20x55 mm),
• 2x saw blades (ø104xø22x3),
• 2x scrapers (R2),
• 2x flat scrapers,
• 2x cutters for edge trimming;
• 2x cutters for double milling unit,
• 2x polishing discs (ø150mm)

Technical data KAM35ALL_400V Holzmann edge banding machine
