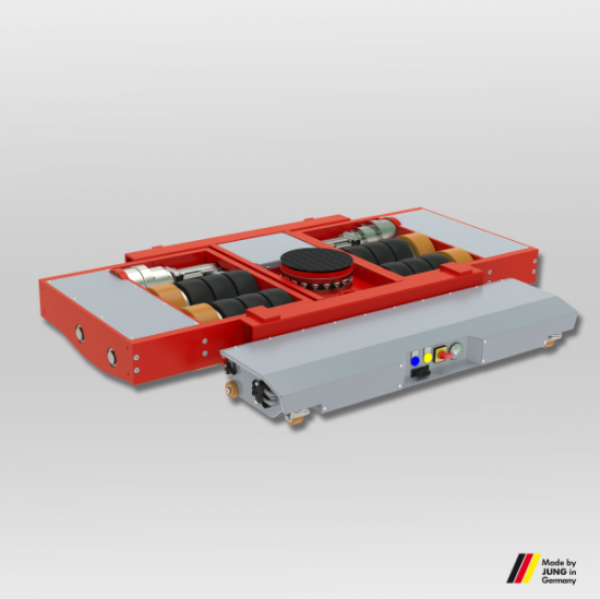

Jung transport chassis driven JLA-e 25/50 H EN/USA
Advantages of electrically driven transport undercarriages
No separate tractor required.
Practical, with battery and handy radio remote control! The remote control can be switched from two-hand to one-hand operation (flexible left/right). The one-handed operation makes it easy to drive the undercarriage exactly straight ahead.
High running time (under full load in ideal conditions) due to direct-drive motor.
Short charging time of the self-propelled transport undercarriage JLA-e 5/12 G: approx. 3-4 hours.
Rotatable through 360°.
Infinitely variable speed.
Compact external dimensions.
Suitable for the armoured rollers of the G series. The trolleys are not included in the scope of delivery.
Stroke possible on request
LiFePo battery technology
Charger switchable 110V/220V
Tested according to DGUV V68 (D)
Technical data Jung transport chassis driven JLA-e 25/50 H EN/USA:
| Titel | Einheit | Daten |
|---|---|---|
| Traglast | kg | 25000 |
| Zuglast | kg | 50000 |
| Anzahl der Rollen | Stück | 16 |
| Abmessungen der Rollen Ø x Rollenlänge | mm | 200 x 83 |
| Einbauhöhe | mm | 230 |
| Auflagefläche Drehteller Ø | mm | 250 |
| Abmessungen | mm | 1180 x 1760 |
| Gewicht ohne Akku + Fernbedienung | kg | 593 |
| Gewicht Akku + Kiste | kg | 90 |
| Gewicht Ladegerät | kg | 16 |
| Geschwindigkeit | m/min | 10 |
| Laufzeit | h | 3-4 |
| Akku mit Ladegerät | Stück | 1x |
| Funkfernsteuerung, Ladegerät und Gürtel mit Halterung | Stück | 1x |
