Advantages of Jung tandem undercarriages:

Optimum running characteristics on uneven floors and yard surfaces due to large castors Ø 140 mm x width 59 mm.
Safe negotiation of small edges and recessed rails.
Dual use: can also be used individually. Without further accessories, the steering units can be used simultaneously individually, each with half the load. The tandem steering gears are supplied with 2 drawbars with towing eyes.
Individual adaptation of the armoured rollers is possible; deviating width dimensions/adjustability possible.
Adjustable tandem steering gear also available in other lengths.

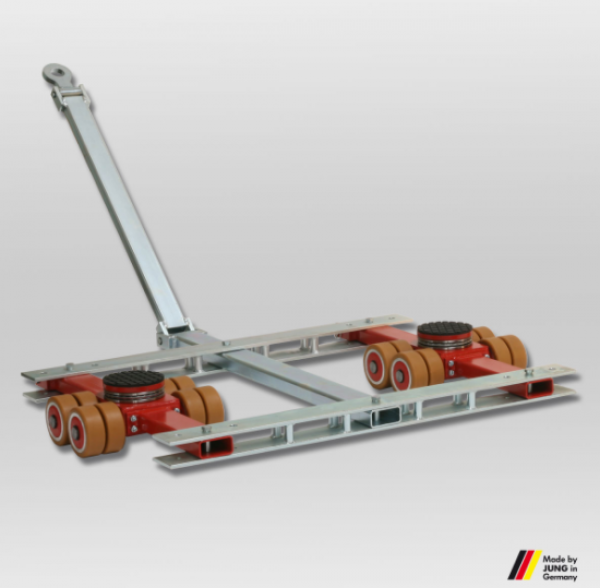

Technical details Jung Tandem Trolley JTL 20 G:

Titel	Einheit	Daten
Traglast	kg	20000
Anzahl der Rollen	Stück	16
Abmessungen der Rollen Ø x Rollenlänge	mm	140 x 59
Einbauhöhe	mm	180
Auflagefläche Drehteller Ø	mm	170
Abmessungen Lenkwerk	mm	1020x 440
Breite Spur- und Verbindungsstange	mm	1330
Tandemlenkwerk verstellbar von	mm	900 - 1230
Verstellbarkeit	x	3
Gesamtlänge und Gesamtbreite	mm	1260 x 1670
Lenkstange mit Zugöse	mm	1230
Gewicht JUWAthan®plus	kg	168
