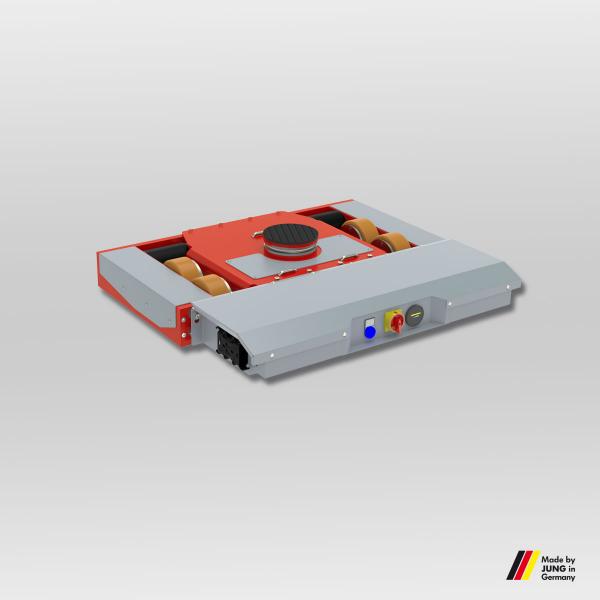

Jung electr. transport trolley JLA-e 5 ⁄ 12 G

Product highlights Jung electr. transport trolley JLA-e 5 ⁄ 12 G

No separate tractor unit required.
Practical, with rechargeable battery and handy radio remote control! The remote control can be switched from two-handed to one-handed operation (flexible left/right). One-handed operation makes it easy to drive the chassis exactly straight ahead.
Long running time (under full load in ideal conditions) thanks to direct-drive motor.
Short charging time of the JLA-e 5/12 G self-propelled transport trolley: approx. 3-4 hours - alternatively with quick charger 2.5 - 3.5 hours (available as an accessory)
Can be rotated through 360°.
Infinitely variable speed.
Compact external dimensions.
Suitable for G series armoured castors. The trolleys are not included in the scope of delivery.
Stroke possible on request
LiFePo battery technology
Charger switchable 110V/220V
Tested in accordance with DGUV V68 (D)

Load capacity	kg	5000
Tensile load	kg	12000
Number of rolls	piece	4
Roll dimensions Ø x roll length	mm	140 x 59
Installation height	mm	180
Support surface turntable Ø	mm	150
Cassette dimensions	mm	760 x 880
Weight without battery + remote control	kg	136
Weight battery + crate	kg	36
Charger weight	kg	3
speed	m/min	10
Runtime	h	3-4
Battery with charger	piece	1x
Radio remote control, charger and belt with holder	piece	1x
