IMT ISOCLEAN Powerful compact extraction system

Product features IMT ISOCLEAN Powerful compact extraction system

The ISOCLEAN professional compact extractor reliably removes smoke, vapors & fine dust and ensures clean air in the workplace. Powerful motor, 3-stage filter system & filter change indicator!



• Efficient extraction of smoke, vapors & fine dust
• Powerful, brushless & low-noise motor
• 3-stage filter system with activated charcoal filter & HEPA filter
• Filter change indicator for maximum safety
• Manual power control & digital display of working time

Scope of delivery IMT ISOCLEAN Powerful compact extraction system

• ISOCLEAN
• Hose
• Filter
• Device plug

Technical facts IMT ISOCLEAN Powerful compact extraction system

ISOCLEAN – The professional compact extraction system for a clean working environment

The ISOCLEAN professional compact extraction system ensures healthy air in the workplace by reliably removing smoke, vapors and fine dust particles from the ambient air. Harmful vapors from oil or other contaminants can build up on the workpiece, especially in hot dip baths such as ISOLAT Dipping Tank with ISOLOX Thermoplastic hot dip wax – ISOCLEAN ensures that they are extracted efficiently.

With a powerful, low-noise and brushless motor, the compact extractor guarantees a maximum air flow rate of 235 m³ per hour and reliably filters fine dust and gases from the air.


Highly efficient 3-stage filter system for clean air

• Pre-filter: Removes coarse particles & extends the service life of the downstream filters
• HEPA fine dust filter: Filters fine dust and smoke particles with an efficiency of 99.95 % down to 0.3 µm
• Activated carbon filter: Absorbs vapors, odors & harmful gases for maximum air purity

ISOCLEAN’s powerful & adjustable motor

✔ Brushless quality motor for quiet & long-lasting operation
✔ Manual power control via a rotary knob
✔ Adjustable working time with digital display

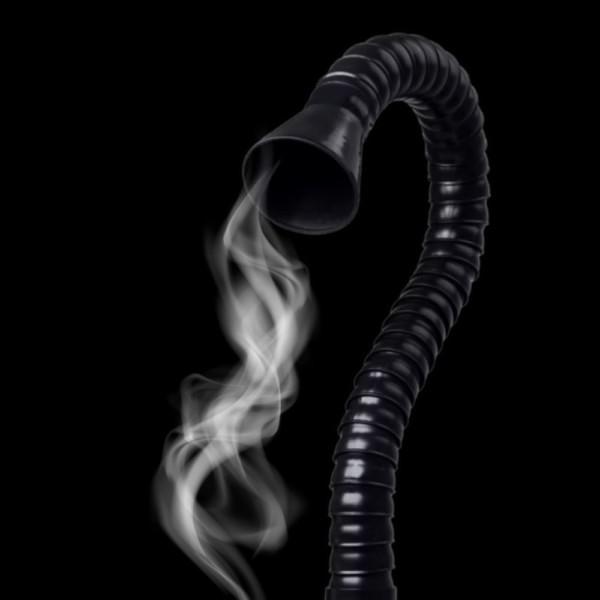

Flexible extraction arm for precise capture of smoke & vapors

The adjustable extraction arm is equipped with a collection funnel that enables the targeted collection of pollutants.
Suction arm length: 1.4 m
Suction diameter: 75 mm
Collection funnel: Ø 20 cm


Filter change indicator for maximum safety

The device gives a visual and audible signal when the filters need to be changed. This guarantees a permanently high extraction performance and protects the health of employees.
