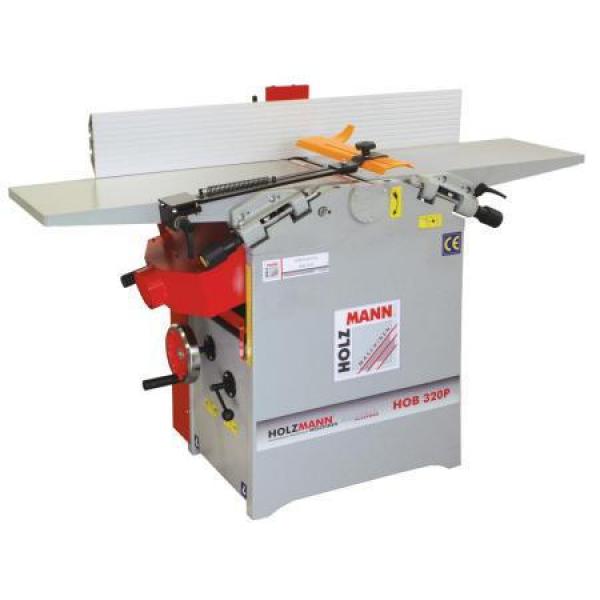

HOB320P230V Holzmann surface and thickness planer

Product Highlights HOB320P230V Holzmann surface and thickness planer​

• particularly high and qualitative processing
• Cast iron table with polished surface
• stable dressing fence (1100x155mm) pivotable from 90°-45
• precision-bearing 3-blade shaft
• Thicknessing table with central column guide and additional guide
• Spiral-toothed infeed roller ensures perfect workpiece transport
• feed speed 6,5m/min

Scope of delivery HOB320P230V Holzmann surface and thickness planer​

• Planer knife,
• Stop

Technical data HOB320P230V Holzmann surface and thickness planer​

• Dressing table height in mm: 860
• Dressing table size in mm: 320x1500
• Dressing max. chip removal in mm: 5
• dressing stop in mm: 1100x155
• Swivel range of dressing fence: 45°-90

• Motor power S6 in W: 3000
• Motor power S1 in W: 2200
• voltage: 230V

• max. workpiece thickness in mm: 230
• min. workpiece thickness in mm: 3

• Thickness planer Table size in mm: 310x600
• Thickness planing max. chip removal in mm: 3

• Planer shaft diameter in mm: 80
• Planer shaft speed in min-1: 5000
• Number of planing knives: 3
• Gross weight in kg: 320
