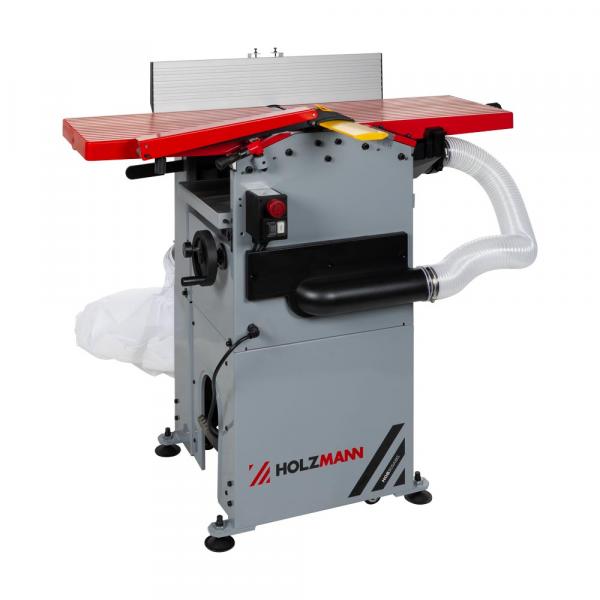

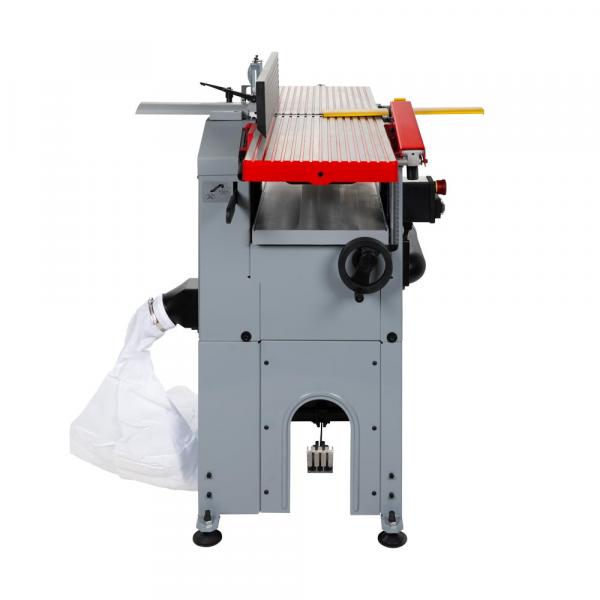

HOB305ABS_400V Holzmann planer and thicknesser
NEW
Product highlights HOB305ABS_400V Holzmann planer and thicknesser
The HOLZMANN HOB305ABS_400V is a planer-thicknesser with integrated extraction system. You save space and costs for an external extraction system. Thanks to the standard transport device, it can be moved away in no time after use. An additional plus in confined spaces!
- Combination machine with integrated extraction system
- Conversion to thicknessing function with swivelling planing table
- Extraction bag for easy replacement externally on the machine
- Planing table made of solid die-cast aluminium
- Base frame included in delivery
- Swivelling aluminium planing fence
- Feed thickness planer can be switched off
- Integrated transport device with 2 fixed and 2 swivel castors with lifting and lowering function
Scope of delivery HOB305ABS_400V Holzmann planer and thicknesser
- Integrated extraction system,
- Base unit,
- Planer blades fitted (308 x 2.5 x 20 mm),
- Dust bag
Technical data HOB305ABS_400V Holzmann planer and thicknesser
| Jointing |
|
| Jointing table size in mm | 1075 x 305 |
| Jointing table height in mm | 925 |
| Max. planing depth in mm | 3 |
| Jointing fence in mm | 643 x 126 |
| Jointing fence tilt range | 90-45° |
| Motor Data |
|
| Motor power S1 in W | 1800 |
| Voltage | 400 V / 50 Hz |
| Cable length | 1.8 m |
| Feed speed | 8.3 m/min |
| General Dimensions |
|
| Footprint in mm | 1140 x 780 x 1080 |
| Thickness Planing |
|
| Thickness planer table size in mm | 500 x 305 |
| Max. planing depth in mm | 2 |
| Pass height in mm | 160 |
| General Planing |
|
| Cutterhead diameter in mm | Ø62 |
| Cutterhead speed in min-1 | 6700 |
| Number of knives | 2 |
| Noise and Vibration |
|
| Sound power level in dB(A) | 96.2 |
| Sound pressure level in dB(A) | 83.2 |
| Weight |
|
| Gross weight in kg | 99 |
| Net weight in kg | 93 |
| Shipping Dimensions |
|
| Packaging width in mm | 690 |
| Packaging length in mm | 1,225 |
| Packaging height in mm | 590 |
| General Data |
|
| EAN code | 9120132141042 |
