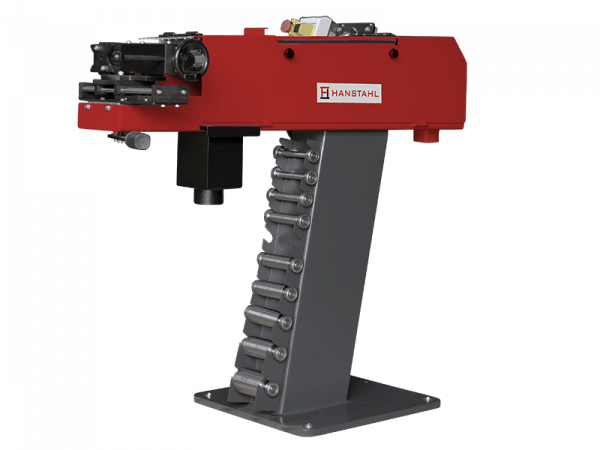

Hanstahl N76 PIPE AND TUBE NOTCHING MACHINES

• Simplified operation on by twistable grinding fixture
• Adequate for tube diameter from 1/ 2” to 2 1/ 2”
• Quick adjustment for grinding angle 30° – 90°
• Powerful motor 2,2 kW / 380 V
• Abrasive roll easy and fast changeable
• Because of tape speeds of 30m/s perfect fitting for steel and material
• Suitable opening dovetails for pipes and profiles made of metal
• 10 pieces processing drum is standard for N76 model
• Vibration reduced stand

Technical data Hanstahl N76 PIPE AND TUBE NOTCHING MACHINES:

MODEL:        N 76
Clamp capacity:    Ømm    16-76
Notching capacity:    Ømm    16-76
Motor power:    kW/V    2,2/380
Dimensions:    mm    1250x700x1150
Weight:    kg    170
