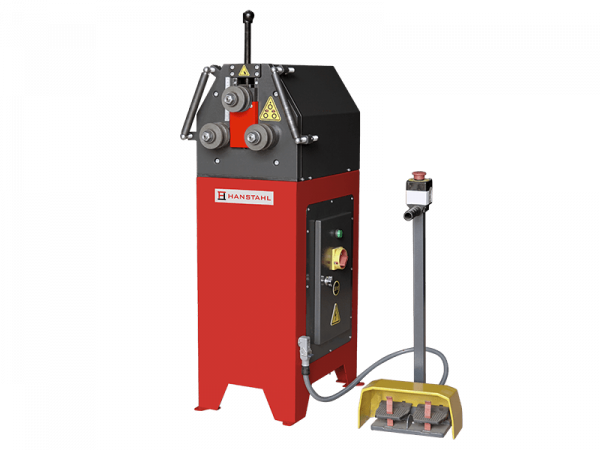

Features Hanstahl B25 MOTORIZED 3 ROLL PIPE & PROFILE BENDING MACHINES:

2 driving rolls
Pyramid style design
Pipe bending capacity up to 25 mm diameter
Angle iron bending capacity up to 20x20mm
Manual Hand Lever adjustment of Top Bending roll
Manually adjustable Top roll up and down movement

Special Features

Foot Pedal
Bottom Stand
Digital readout for top roll
Special roll sets for Pipes-Profiles

Technical data Hanstahl B25 MOTORIZED 3 ROLL PIPE & PROFILE BENDING MACHINES:

MODEL: B25
Rolls shaft: Ømm   25
Rolls diameter: Ømm   86
Working speed: m/min   15
Motor power: kW/V   '0,37/220
Dimensions (L x W x H): mm   580x400x1100
Weight: kg   105
