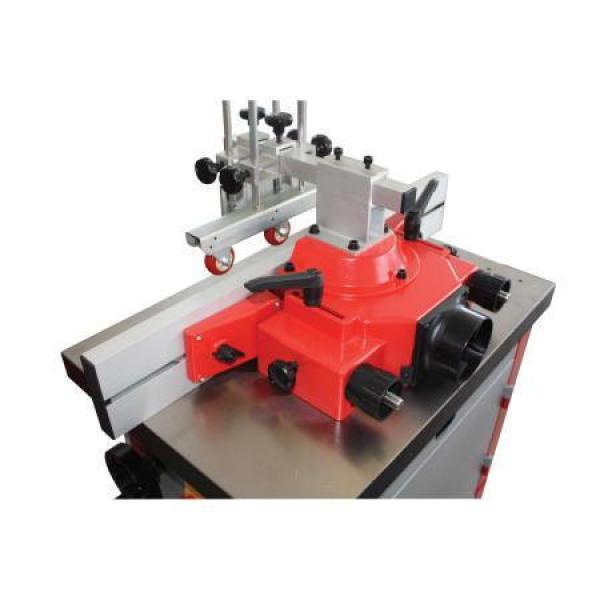

FS200S230V Holzmann milling machine

Product Highlights FS200S230V Holzmann milling machine​

• swivel milling spindle as standard (-5° - +30°)
• solid and torsion-free grey cast iron table
• high-quality fence with hold-down system and fine adjustment
• 4 milling speeds as standard
• maximum cutter diameter 200mm
• large hand wheels for spindle adjustment
• Speed readable via LED display
• Sliding table optionally available and retrofittable
• Sanding roller included in delivery

Scope of delivery FS200S230V Holzmann milling machine​

• Grinding attachment,
• Milling bonnet according to CE incl. aluminium stops,
• Roll hold-down and milling protection

Technical data FS200S230V Holzmann milling machine​

• Motor power S1 in W: 2800
• Motor power S6 in W: 3750
• voltage: 230V

• Suction connection in mm: 100
• Table height in mm: 900
• Table size in mm: 710x640

• max. tool diameter retractable in mm: 190
• milling spindle swivel: -5° +30
• max. clamping height in mm: 105
• spindle stroke in mm: 100
• milling spindle speed in min-1: 1800/3000/6000/9000
• milling spindle diameter in mm: 30
• Table opening in mm: 200
• Milling fence in mm: 360x120
• max. tool diameter above table in mm: 190
• Gross weight in kg: 191
