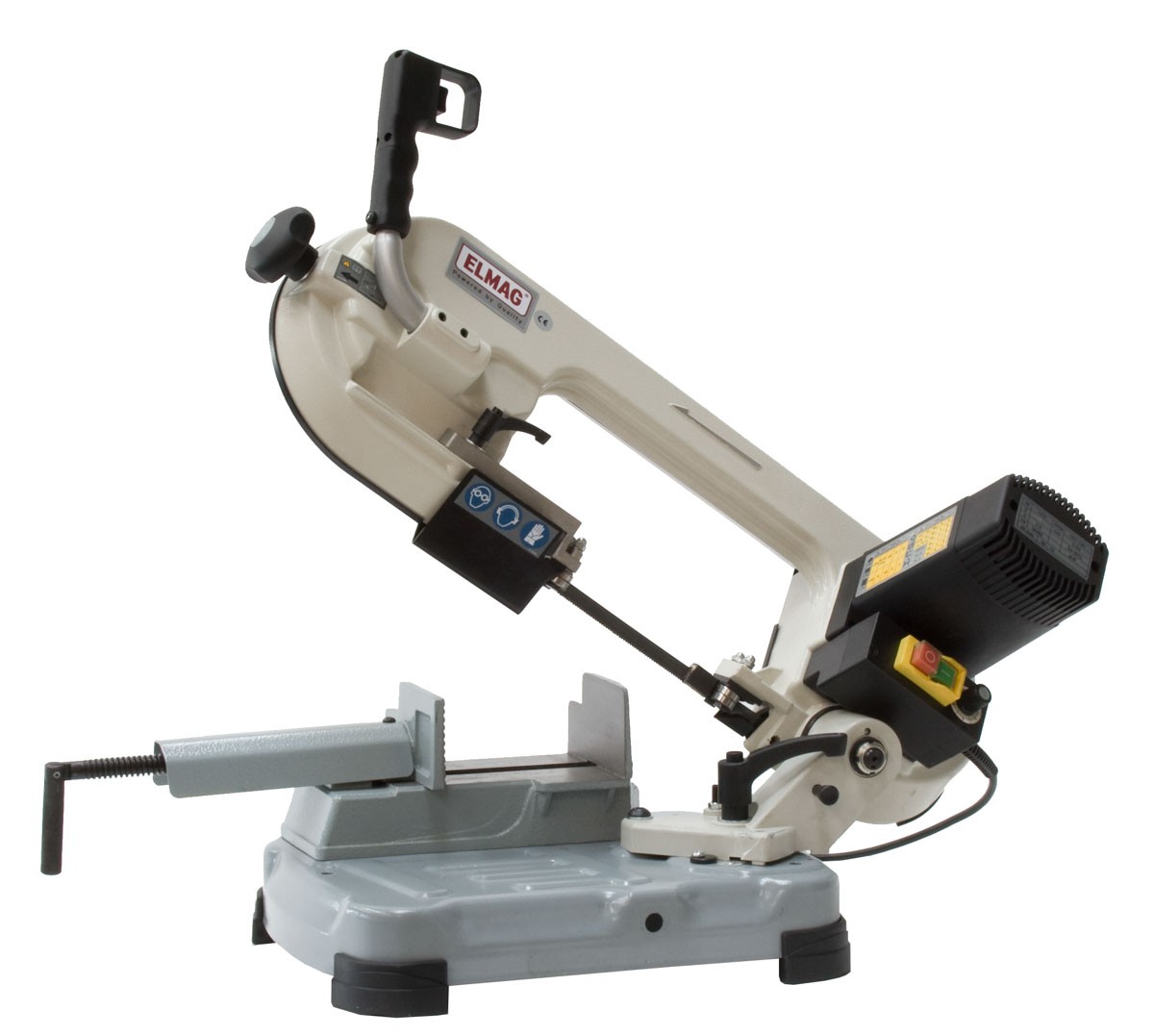

ELMAG TB 125 Vario metal band saw machine
Product highlights ELMAG TB 125 Vario metal band saw machine
Variable cutting speed
TB Vario metal band saws allow an optimization of the cutting performance by continuously adapting the cutting speed to the material. They convince by high cutting quality and a clean cutting pattern.
TB 125 Vario - small very large
Super compact bandsaw with variable speed for cutting sizes up to 122x122 mm. Lightweight die-cast aluminium construction, only 21 kg. Ideal for model making, home workshops and small service jobs.
TB Vario metal band saws allow an optimization of the cutting performance by continuously adapting the cutting speed to the material. They convince by high cutting quality and a clean cutting pattern.
TB 125 Vario - small very large
Super compact bandsaw with variable speed for cutting sizes up to 122x122 mm. Lightweight die-cast aluminium construction, only 21 kg. Ideal for model making, home workshops and small service jobs.
Standard equipment ELMAG TB 125 Vario metal band saw machine
- TB Metal band saw machine

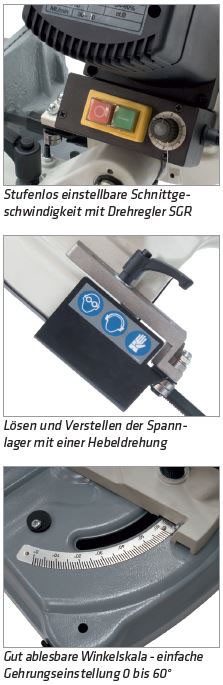

- SGR Cutting speed controller
- Standard swivel vise
- Bar stop with material stop
- WSS Angle quick release
- Angle Scale
- power button
- ERGO operating lever / On/Off
- Saw blade wheels with precision bearings
- Saw band clamp
- Saw blade guide adjustable at the front
- Tensioning bearing front/rear adjustable
- Saw blade and grab guard
- Zero voltage release
- Base/ bracket housing die-cast aluminium
- Band saw blade bimetal cobalt
- Tools/operating instructions/CE
- SGR Cutting speed controller
- Standard swivel vise
- Bar stop with material stop
- WSS Angle quick release
- Angle Scale
- power button
- ERGO operating lever / On/Off
- Saw blade wheels with precision bearings
- Saw band clamp
- Saw blade guide adjustable at the front
- Tensioning bearing front/rear adjustable
- Saw blade and grab guard
- Zero voltage release
- Base/ bracket housing die-cast aluminium
- Band saw blade bimetal cobalt
- Tools/operating instructions/CE
Technical facts ELMAG TB 125 Vario metal band saw machine
- Electronic cutting speed controller SGR 30-80 m/min
- Smooth running drive motor 1,250 W
- Can be used everywhere: with earthed plug 230 V
- High quality band saw blade 13x0,65 mm made of bimetal cobalt for cutting with and without coolant
- Swivel vice for safe clamping and releasing of materials
- High repetition accuracy: with bar stop and material stop
- Large mitre adjustment 0-60°: with quick release skewer WSS and easy-to-read angle scale
- Tight, safe saw blade guidance: Tensioning bearing adjustable at the front with a turn of the lever
Technical data ELMAG TB 125 Vario metal band saw machine
- Round tube Cutting range at 0°: Max. 122 mm
- Round tube Cutting range at 45° right mitre: Max. 95 mm
- Round tube Cutting range at 60° right mitre: Max. 63 mm
- Square tube Cutting range at 0°: Max. 122 mm
- Square tube Cutting range at 45° right mitre: Max. 95 mm
- Square tube Cutting range at 60° right mitre: Max. 63 mm
- Rectangular tube Cutting range at 0°: Max. 122x122 mm
- Rectangular tube Cutting range at 45° right mitre: Max. 95x95 mm
- Rectangular tube Cutting range at 60° right mitre: Max. 63x63 mm
- cutting range max.: 122x122mm
- saw blade length: 1440mm
- saw band height: 13mm
- Vise opening max.: >125mm
- Cutting angle: 0-60
- cutting speed: 30-80m/min
- Engine power: 1250W
- Power supply: 230 / 50-60V/Hz
- length: 705mm
- width: 290mm
- height: 490mm
- weight: 21kg
Highest quality of ELMAG machines
Benefit from a 2 year ELMAG warranty
Accessories for ELMAG machines on request
